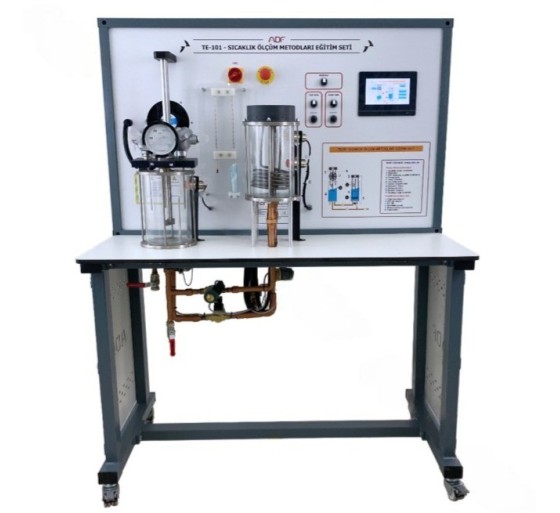

TE-101 - Temperature Measurement Training Set

Logo ADF Didactic

Reference : TE-101

The TE-101 is a comprehensive training system designed for studying and comparing different temperature measurement methods used in industrial and scientific environments.

It enables analysis of both mechanical and electronic measurement techniques, including steady-state and transient thermal behavior.

🔍 General Description

Various physical principles are used to measure temperature. The TE-101 allows users to observe and compare these methods under real operating conditions using both analog and electronic instruments.

Temperature sensors are mounted on a height-adjustable platform, allowing immersion in a heated water tank up to 80°C. A fan ensures nearly constant ambient conditions, while a second tank with an electronically controlled heater provides precise temperature control.

Measured values can be displayed in analog or digital form and recorded continuously using a 3-channel line recorder, making it possible to analyze response times and temperature variations.

⚙️ Key Features

Steady-state and transient temperature measurement
Comparison of multiple sensor technologies
Controlled temperature steps up to 80°C
Analog and digital measurement display
Continuous data recording (3-channel recorder)
Stable ambient conditions ensured by integrated fan
HDMI panel interface

🎯 Applications

Technical and academic training
Educational laboratories
Sensor and instrumentation studies
Thermal control system analysis

🌡️ Included Sensors

Liquid thermometer
Bimetal thermometer
Type K thermocouple
NTC thermistor
Pt100 resistance thermometer
Psychrometer (relative humidity measurement)

📊 Technical Specifications

Temperature range: 0 to 100°C
Relative humidity: 3% to 96%
Maximum water temperature: ~80°C
Tank capacity: 4 liters
Both tanks equipped with stirrers

⚡ Technical Details

Heater power: 2 kW (230V) / 1.5 kW (120V)
Temperature control: PID controller
Control system: PLC
Interface: Serial interface + HDMI panel

🔌 Power Supply

230V, 50Hz, single phase
230V, 60Hz, single phase
120V, 60Hz, single phase

Reference TE-101

Specific References

Download

TE-101 - Neutral Specifications EN

Download (2.24KB)

TE-101 - Neutral Specifications FR

Download (2.73KB)
