TFM-500 – Thermodynamic Cycles of Reciprocating Machines
Référence : TFM-500
General Description

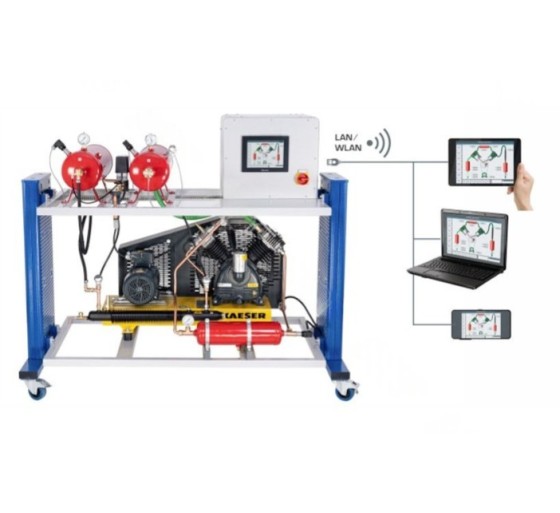

The TFM-500 is a complete educational system designed for studying thermodynamic cycles of reciprocating machines, particularly compressed air generation systems. It enables analysis of a two-stage compressor and visualization of compression processes using a p-V diagram.
Applications
- Technical and engineering education
- Industrial pneumatic system training
- Energy and mechanical engineering laboratories
- Thermodynamic cycle demonstrations
Main Features
- Recording characteristics of a two-stage compressor
- Visualization of compression processes (p-V diagram)
- Measurement of pressure, temperature, and electrical power
- Determination of intake volumetric flow rate
- Intercooling between compression stages
- Touchscreen control with intuitive interface
- PLC-based system control
- Remote operation via integrated router (up to 10 devices)
- Internal data storage via USB
System Structure
Compression
Two-stage piston compressor with V-arranged cylinders for efficient compression.
Cooling
Intercooling via intermediate pressure vessel between stages.
Storage and Safety
Pressure vessels equipped with safety valves, pressure switch, blow-off valve, and silencer.
Technical Specifications
Compressor
- Type: Two-stage
- Configuration: 2 cylinders in V-arrangement
- Power consumption: 3 kW
- Speed: 710 rpm
- Intake capacity: 250 L/min
- Delivered capacity: 202 L/min at 12 bar
- Operating pressure: 12 bar
- Maximum pressure: 35 bar
Pressure Vessels
- Intake vessel: 20 L
- After 1st stage: 5 L
- After 2nd stage: 20 L
- Rated pressure: 16 bar
Measurements
- Differential pressure: 0 – 25 mbar
- Pressure: 0 – 1.5 bar / 0 – 16 bar
- Temperature: 0 – 200 °C
- Power: 0 – 3500 W
Power Supply
- 400 V – 50 Hz – 3 phases
- 400 V – 60 Hz – 3 phases
- 230 V – 60 Hz – 3 phases
- UL/CSA optional
Dimensions and Weight
- Dimensions (L x W x H): 1770 x 800 x 1520 mm
- Weight: approx. 304 kg
Compliance and Safety
- CE compliant
- Machinery Directive 2006/42/EC
- Low Voltage Directive 2014/35/EU
- EMC Directive 2014/30/EU
- Pressure Equipment Directive (PED) 2014/68/EU
