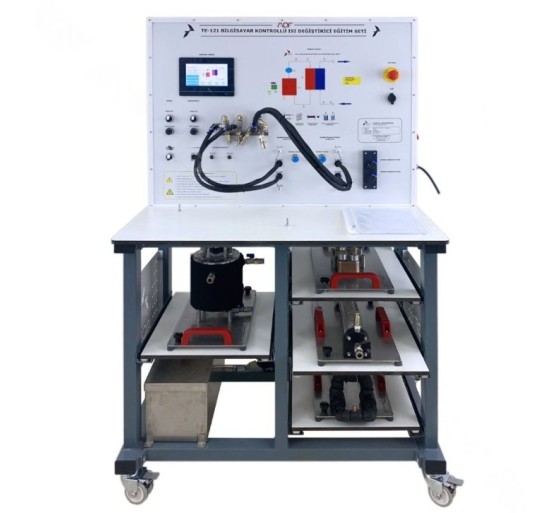

TE-121 - Heat Exchanger Training Bench

General Description

The TE-121 is an educational laboratory equipment designed for studying the construction, operation, and performance of various types of heat exchangers used in industrial applications.

Educational Applications

Experiments and Studies

Study of heat exchanger operating principles
Thermal performance analysis
Understanding heat transfer mechanisms
Evaluation of heat losses

Types of Heat Exchangers Studied

Shell and tube heat exchanger
Plate heat exchanger
Air/water heat exchanger
Pipe-in-pipe heat exchanger
Jacketed stirred vessel heat exchanger

Included Modules

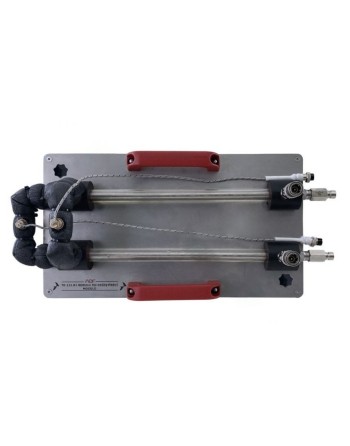

TE-121.01 – Tubular Heat Exchanger Module

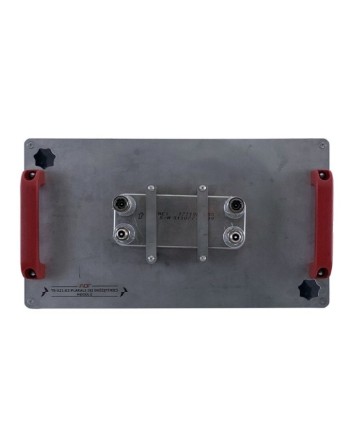

TE-121.02 – Plate Heat Exchanger Module
TE-121.03 – Shell & Tube Heat Exchanger Module

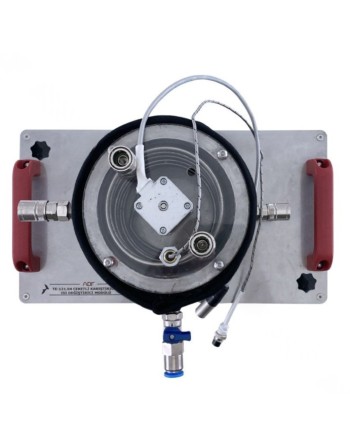

TE-121.04 – Jacketed Stirrer Module

Features

Determination of transferred thermal power
Measurement of heat transfer coefficients
Heat loss analysis
Operation under various conditions

Technical Specifications

Structure

Aluminum frame construction
Hydraulic piping system with valves and fittings

Integrated Equipment

Shell and tube heat exchanger
Plate heat exchanger
Air/water and pipe-in-pipe heat exchanger
Electric water heater
Circulation pumps
Measurement system
Electronic control unit

Power Supply

Power: 2.5 kW
Voltage: 220V ±10%
Frequency: 50 Hz
Power cable: European standard

Dimensions and Weight

Height: 700 mm
Width: 600 mm
Depth: 700 mm

Delivery

The equipment is supplied as a complete set, ready for operation, fully compatible in design and functionality for laboratory use.

Reference TE-121

Data sheet

HS: 90230010
Delivery time of product after confirm order: 4 to 6 months

Specific References

Download

TE-121 - Neutral Specifications EN

Download (902B)

TE-121 - Neutral Specifications FR

Download (1.06KB)
