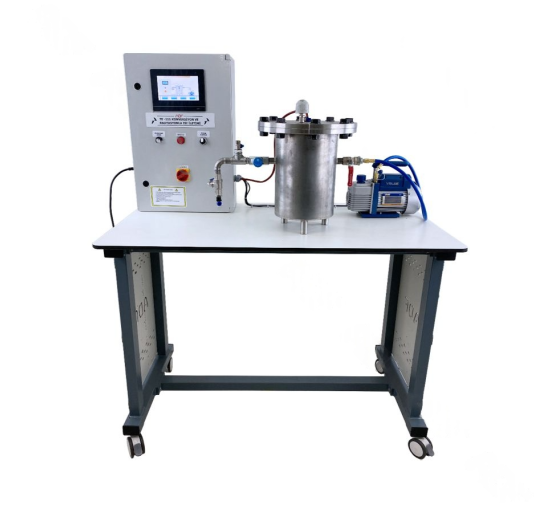

TE-107 - Convection and Radiation Training Set



Logo ADF Didactic

Reference : TE-107



The TE-107 is an advanced educational system designed to analyze and distinguish heat transfer mechanisms by convection and radiation under real operating conditions.

🔍 Description

In real thermal systems, heat transfer occurs simultaneously through conduction, convection, and radiation. The TE-107 enables users to isolate and study the individual contributions of convection and radiation.

The system is based on a heated metal cylinder placed at the center of a pressure vessel. Surface temperature is controlled, while sensors measure temperature and pressure conditions.

⚙️ Key Features

  • Study of heat transfer by convection and radiation
  • Operation under vacuum or positive pressure
  • Comparison between different gases (air, nitrogen, helium, CO₂)
  • Minimized conduction losses via optimized suspension
  • Precise temperature control
  • Data acquisition and analysis via dedicated software

🧪 Possible Experiments

  • Heat transfer under vacuum (radiation dominant)
  • Heat transfer with gases (convection)
  • Gas comparison studies
  • Effect of pressure on heat transfer



📊 Instrumentation

  • 1 temperature sensor (cylinder)
  • 1 power sensor
  • 1 Pirani vacuum sensor
  • 1 piezo-resistive pressure sensor
  • Digital displays
  • Ethernet data transmission

💻 Software

ADF software for data acquisition and analysis (Windows).

📐 Technical Specifications

Heating Element

  • Output: 40 W
  • Radiation surface: ~61 cm²

Pressure Vessel

  • Pressure: -1 to +1.5 bar
  • Volume: 11 L

Vacuum Pump

  • Power: 250 W
  • Capacity: 5 m³/h
  • Final pressure: 3 × 10⁻³ mbar

Measurement Ranges

  • Vacuum: 0.5 × 10⁻³ to 1000 mbar
  • Pressure: -1 to +1.5 bar (relative)
  • Temperature: 0 to 250 °C
  • Power: 0 to 23 W

🔌 Power Supply

  • 230V, 50Hz, single phase
  • 230V / 120V, 60Hz, single phase

📦 Requirements

  • Compressed air: minimum 1.5 bar
  • PC with Windows recommended

✅ Compliance

  • Machinery Directive 2006/42/EC
  • Low Voltage Directive 2014/35/EU
  • EMC Directive 2014/30/EU
  • RoHS Directive 2011/65/EU
