TE-110 - Laws of Radiant Heat Transfer and Exchange



Logo ADF Didactic

Reference : TE-110



General Description

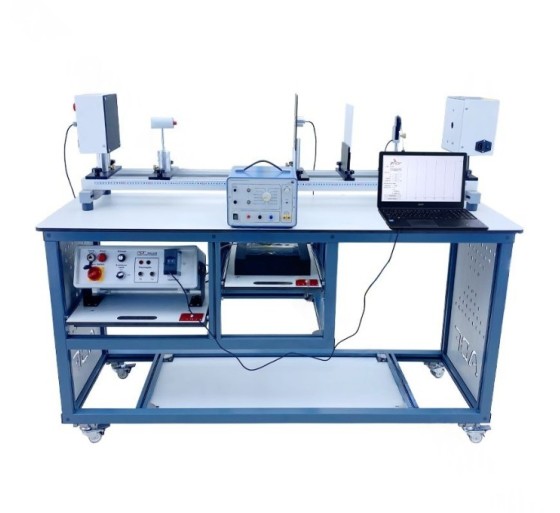

The TE-110 is a complete experimental unit designed for studying the laws of radiant heat transfer. Thermal radiation is an energy transfer mechanism via electromagnetic waves emitted by any body above absolute zero.

This educational system allows investigation of thermal and light radiation, including UV, visible, and infrared radiation, making it ideal for physics and thermal science laboratories.

Main Features

The system includes two radiation sources: a thermal radiator and a light source. Detection is carried out using a thermopile for thermal radiation and a photodiode-based lux meter for light radiation.

Optical components such as filters, diaphragms, and absorption plates can be mounted on a graduated optical bench for precise distance measurements.

Measurement and Analysis

All components can be rotated to analyze the effect of angle of incidence on radiation intensity. Measured values are digitally displayed and transferred to a PC via USB for analysis.

Experiments

  • Lambert’s law (direction and distance)
  • Stefan-Boltzmann law
  • Kirchhoff’s laws
  • Radiation absorption and reflection
  • Thermal and light radiation studies
  • Influence of distance and angle
  • Wide experimental range



Technical Specifications

  • Thermal radiator: AlMg3, black anodized
  • Power: 400W – 230V
  • Max temperature: 300°C
  • Light source: Halogen lamp 50W
  • Luminous flux: 1185 lm
  • Color temperature: 2950 K
  • Rotation: 0–90° both sides
  • Radiating plate: 200 x 200 mm

Optical Components

  • Slit diaphragm
  • 3 color filters: red, green, infrared
  • Absorption plate
  • Reflection plate with type K thermocouple

Measurement Ranges

  • Illumination: 0 – 1000 lux
  • Temperature: 0 – 200°C
  • Radiant power: 0 – 1000 W/m²

Connectivity & Software

Data is transferred via USB to a PC and analyzed using the included software compatible with Windows.

Operating Requirements

  • PC required (Windows 8.1 / 10 recommended)
  • Delivered fully assembled and ready to operate
