CBT-100E - Aircraft EFIS Trainer – Complete Avionics Training System



Logo ADF Didactic

Reference : CBT-100E




General Description

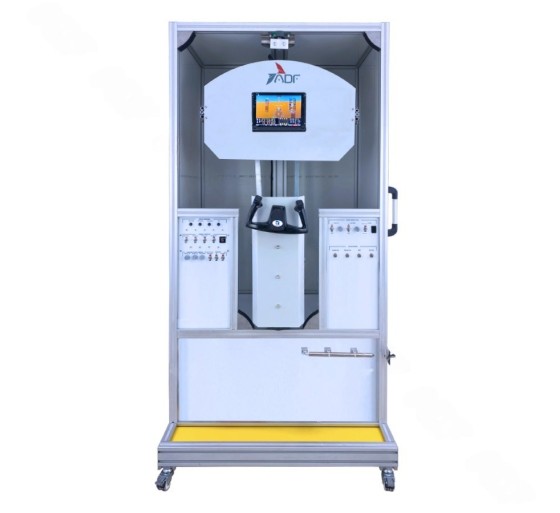

The Aircraft EFIS Trainer is a complete and fully functional simulation of a typical aircraft cockpit. It includes essential flight instruments and pitot-static instruments.

This training system provides hands-on maintenance training while also functioning as a demonstration tool for instructors. It demonstrates the principles of gyros, flight instruments, and can be used for teaching display removal and replacement procedures.

NOTE: The system can be upgraded with engine monitoring systems, CBT-100D
NOTE: The trainer can be customized with sensors and indicators according to training requirements.



Features

System Architecture

  • Combination of primary flight instrumentation, GPS, and pitot-static system
  • Utilizes latest GPS and Digital ADAHRS (Air Data and Attitude Heading and Reference Systems)
  • Provides highly accurate and reliable aircraft position, rate, vector, and acceleration data

Dynamic Simulation

  • Three degrees of freedom instrument panel
  • Full demonstration of attitude and directional gyro functions
  • Simulation of roll, pitch, and yaw movements
  • Controlled by a mechanism operated via control yoke

Pitot-Static System

  • Capability to conduct pitot-static system checks for digital instruments


Components

Main Components

  • Smart PFD-MFD Screen
  • Sensors
  • OAT Sensor
  • Pitot Tube
  • Static Port
  • Ammeter Shunt
  • GPS Receiver / Antenna
  • Aircraft Circuit Breakers

Pitot-Static System

  • Pressure Pump to create pitot pressure
  • Vacuum Pump to create static pressure
  • Pitot Tube (not operational)
  • Fuselage Static Port (not operational)
  • Alternate Static Port (not operational)
  • Static Source Selector Switch (not operational)
  • Two test ports for pitot-static test set

Power

  • Main Power
  • PFD
  • Vacuum Pump


Components Technical Specifications

Smart PFD-MFD Screen

  • Screen brand/model may vary depending on market availability (equivalent accepted)
  • Very bright, high-resolution display driven by advanced graphics processors
  • Resolution: 1280 x 800 pixels
  • 1200+ nit TFT active-matrix capacitive multi-touch LCD screen
  • High-definition touch screen

Display Connectors

  • 37-pin DIN connector for main wiring harness
  • Four (4) RS-232 connector ports for compatible equipment
  • Configurable baud rates and data formats for all serial ports
  • Minimum two (2) USB connectors
  • One Ethernet connector for data synchronization between displays

Display Power

  • Operates between 10 and 30 volts DC

Display Functions

  • Displays engine instrument data
  • Displays flight instrument data

Screen Dimensions

  • Width: 7.64 inches
  • Height: 5.59 inches
  • Depth: 3.13 inches

User Interface

  • Interaction via two knobs
  • Two buttons integrated into knobs
  • Eight buttons along the bottom bezel
  • Touch gesture interaction

Advanced Features

  • Robust GPS moving map
  • Automatic brightness adjustment via ambient light sensor
  • Manual brightness adjustment
  • Screen modes: full screen or 50/50 split
  • Count-up / Count-down timer


PFD Page Layout

  • Airspeed Indicator
  • Ground Speed (GS)
  • True Airspeed (TAS)
  • Airspeed Bug
  • Airspeed Trend Rate
  • Attitude Indicator
  • Flight Path Marker
  • Altimeter
  • Barometer Setting (BARO)
  • Altitude Bug
  • Altitude Trend Rate
  • Density Altitude
  • Vertical Speed Indicator
  • Vertical Speed Bug
  • Heading Indicator / Directional Gyro
  • Heading Bug
  • Slip Ball
  • Angle of Attack Indicator
  • Outside Air Temperature (OAT)
  • Winds Aloft magnitude and vector
  • Artificial Horizon / Synthetic Vision


Menu Page

  • Six Pack
  • G-Meter
  • Terrain Alert
  • Airport Flags
  • HSI SRC
  • Bugs


Main Menu Bar

  • NRST (Nearest)
  • INFO
  • FPL (Flight Plan)
  • MENU
  • Messages (NO MSG / MESSAGE / CAUTION / WARNING)


Knob Functions

  • Adjust Bug (HDG, ALT, etc.)
  • Adjust BARO value
  • Change map scale
  • Activate and move cursor


Flight Data Modules

  • All sensors are solid state
  • Accelerometers measuring forces in three axes
  • Rotational rate sensors measuring rotation on three axes
  • Pressure transducers for air data
  • Magnetometers measuring magnetic heading


Documentation

  • User Manual
  • Study Guide
  • Instructor’s Guide
  • Original Device Manual
  • Original Wiring Diagrams
  • Training videos for instructors


Power Specifications

  • Electrical box
  • Residual current device
  • Emergency button
  • Energy signal lamp
  • 110 VAC 60 Hz or 220–240 VAC 50 Hz


Required Items

  • Lighter
  • Air compressor (maximum 90 PSI outlet pressure)


Accessories

  • Instructor Panel Control Box for scenario and fault simulation



CBT-100E

Specific References
