CBT-100D - Aircraft EFIS/EICAS Cockpit Trainer



Logo ADF Didactic

Reference : CBT-100D

General Description

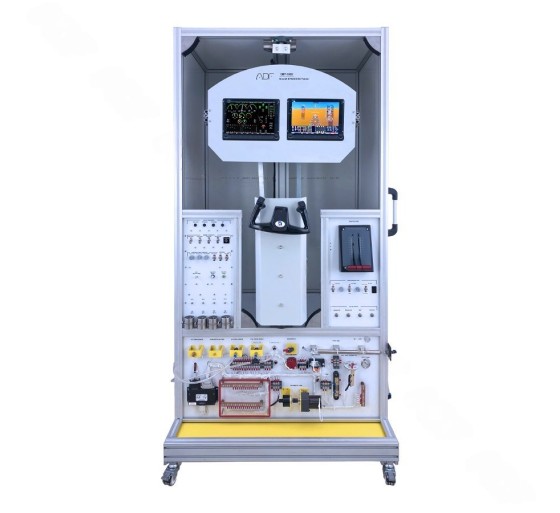

AIRCRAFT EFIS/EICAS Trainer (CBT-100D) is a complete and fully functional simulation of a typical aircraft cockpit. It includes essential flight, engine, and pitot-static instruments.

This training system provides hands-on maintenance training while also functioning as a demonstration tool for instructors. It demonstrates the principles of gyros, altimeter, and engine instruments, and can also be used for teaching instrument removal and replacement.


Important Notes

If you wish to upgrade this system with navigation systems such as VOR/ILS/VHF, please contact us.

The trainer can be customized with sensors and indicators according to your training needs. Please contact us for special requests.

This trainer also allows performing practical tasks of EASA PART 147 ATA-31-00-00.


Features

  • The system combines primary flight instrumentation, aircraft systems instrumentation, and engine instrumentation.
  • Trainer uses the latest GPS and Digital ADAHRS (Air Data and Attitude Heading and Reference Systems).
  • ADAHRS provides highly accurate and reliable aircraft position, rate, vector, and acceleration data.
  • Three degrees of freedom instrument panel enables full demonstration of attitude and directional gyro functions.
  • Functional engine monitoring system can be connected to engine sensors.
  • Primary flight display mounted on a panel simulating roll, pitch, and yaw controlled by a control yoke.
  • Provision of engine sensor simulation.
  • Pitot-static system for conducting pitot-static checks.
  • Instructor panel for fault insertion.



Components

Main Elements

  • Smart PFD-MFD Screen
  • Engine Data Modules

Sensors

  • Oil Temperature Sensor
  • Carburetor Air Temperature Sensor
  • Manifold Pressure Sensor
  • Fuel Level Sensor
  • Oil Pressure Sensor
  • Fuel Pressure Sensor
  • Engine RPM Sensor
  • Fuel Flow Sensor
  • Ammeter Shunt
  • CHT Thermocouples (Qty 4)
  • EGT Thermocouples (Qty 4)
  • OAT Sensor
  • Pitot Tube
  • Static Port
  • Inductive Sensor
  • GPS Receiver / Antenna
  • Aircraft Circuit Breakers
  • Throttle Lever
  • Propeller Lever

Pitot-Static System

  • Pitot Tube
  • Fuselage Static Port
  • Alternate Static Port
  • Static Source Selector Switch
  • Two Test Ports for Pitot-Static Test Set

Power & Instruments

  • Main Power
  • PFD
  • Tachometer
  • Vacuum Pump

Contacts

  • Pitot Heater
  • L/G
  • Taxi Light

Auxiliary Flight Control

  • Aileron Trim
  • Elevator Trim
  • Flap Position

Electronic Simulation of Sensors

  • Oil Temperature
  • Manifold Pressure
  • Engine RPM
  • Oil Pressure
  • Fuel Level
  • Fuel Pressure
  • Sender Selector Panel
  • Fuel System
  • Oil System
  • Vacuum Control Panel
  • Static System Instrument
  • MAP
  • Fuel Flow


Technical Specifications

Smart PFD-MFD Screen

NOTE: Brand/model and some specifications may vary depending on market availability (or equivalent).

  • High brightness and high-resolution display with advanced graphics processors
  • Resolution: 1280 x 800 pixels
  • Brightness: 1200+ nits
  • TFT active-matrix capacitive multi-touch LCD
  • 37-pin DIN connector for main wiring harness
  • Four (4) RS-232 ports
  • Configurable serial ports
  • Minimum two (2) USB connectors
  • Ethernet connector for synchronization
  • Operating voltage: 10–30 V DC
  • Displays engine and flight instrument data

Screen Dimensions

  • Width: 7.64 inches
  • Height: 5.9 inches
  • Depth: 13 inches

User Interface

  • Two knobs
  • Two buttons integrated into knobs
  • Eight bezel buttons
  • Touchscreen gestures

Functions

  • GPS moving map
  • Automatic brightness via ambient sensor
  • Display modes: PFD / MAP / ENGINE
  • Full or split screen (50/50)
  • Count-up / count-down timer

PFD Layout Includes

  • Airspeed Indicator
  • Ground Speed (GS)
  • True Airspeed (TAS)
  • Airspeed Bug
  • Airspeed Trend
  • Attitude Indicator
  • Flight Path Marker
  • Altimeter
  • BARO setting
  • Altitude Bug
  • Altitude Trend
  • Density Altitude
  • Vertical Speed Indicator
  • VS Bug
  • Heading Indicator
  • HDG Bug
  • Slip Ball
  • Angle of Attack
  • OAT
  • Wind vector
  • Synthetic Vision

Menu Functions

  • Six Pack
  • G-meter
  • Terrain Alert
  • Airport Flags
  • HSI SRC
  • Bugs

Flight Data Modules

  • 3-axis accelerometers
  • 3-axis rotation sensors
  • Pressure transducers
  • Magnetometers

Engine Data Modules

  • RPM
  • Manifold Pressure
  • Oil Temperature
  • Oil Pressure
  • EGT
  • CHT
  • Fuel Levels
  • Voltage
  • Current
  • Fuel Pressure
  • Fuel Flow
  • Carburetor Air Temperature
  • Coolant pressure and temperature
  • Flap and trim potentiometers
  • External contacts
  • Fuel computer
  • Pitch trim indicator
  • Roll trim indicator
  • Flap indicator


Documentation

  • User Manual
  • Study Guide
  • Instructor’s Guide
  • Original Device Manual
  • Original Wiring Diagrams
  • Training Video for Teachers


Power Specifications

  • Electrical Box
  • Residual Current Device
  • Emergency Button
  • Energy Signal Lamp
  • 110 VAC 60 Hz or 220-240 VAC 50 Hz


Required Items

  • Lighter
  • Air Compressor max 90 PSI outlet


Accessories

  • Instructor Panel Control Box for scenario and fault simulation


Compliance

Equipment complies with CE standards.
