FM-204 - Energy Losses in Piping Elements



Logo ADF Didactic

Reference : FM-204



Overview

The FM-204 is a training unit designed for the comprehensive study of pressure losses in piping systems. It enables the visualization and analysis of hydraulic resistance effects caused by pipe elements such as elbows, valves, and cross-section variations.

With its modular design and interchangeable components, this system is ideal for technical and higher education laboratories.

When water flows through a piping system, hydraulic resistances lead to pressure losses, particularly at fittings, valves, and other pipe components.

The FM-204 unit is designed to study and visualize these pressure losses in various piping elements. This experimental setup enables the analysis of how different pipe geometries influence fluid flow.

Equipment Description

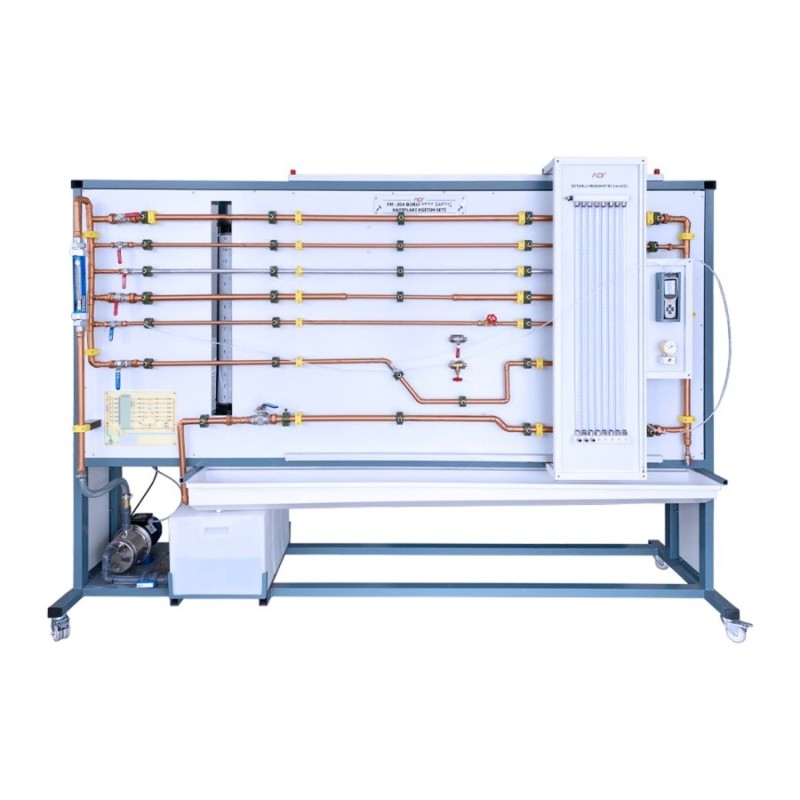

The FM-204 experimental unit consists of a pipe section incorporating several elements with different flow resistances, as well as contraction and expansion sections. A ball valve is also integrated into the system.

Pressure measuring points equipped with annular chambers are positioned upstream and downstream of the pipe elements to ensure accurate pressure measurements.

These measuring points can be connected in pairs to six tube manometers, allowing the determination of pressure losses across each piping element.

Educational Applications

- Study of major and minor pressure losses
- Flow analysis in different materials and pipe diameters
- Understanding pressure and flow behavior
- Practical training in measurement and instrumentation
- Fluid mechanics laboratory experiments



Key Features

- Standalone system with closed-loop hydraulic circuit
- Integrated two-stage centrifugal pump
- Galvanized steel and transparent polyurethane pipes
- Modular pipe sections: elbows, contractions, expansions
- Interchangeable valves (needle, shut-off, ball valve)
- High-accuracy annular pressure measurement points
- Movable tube manometer panel
- Rotameter and volumetric tank for measurement and calibration
- Stopwatch included for experimental measurements

Instrumentation and Measurement

- Tube manometers for pressure loss visualization
- Bourdon tube pressure gauge
- Differential pressure sensor
- Rotameter for flow rate measurement
- Volumetric tank for experimental validation

Technical Specifications

- Test section length: 2 m
- Pressure measurement points: ≥ 3 per section
- Pump power: 0.50 kW
- Maximum flow rate: 4.5 m³/h
- Maximum head: 15 m
- Main tank capacity: 110 L
- Volumetric tank: 20 L
- Pressure range: -1 to +1.5 bar
- Differential pressure: ±350 mbar
- Column manometers: 8 units (0–1000 mmWC)
- Flow meter: 400–4000 L/h
- Power supply: 230 V – 50 Hz – single phase

Pipe Configuration

- Transparent pipes: 32x2 mm, 25x2 mm
- Steel pipes: 1/2”
- Elbow section: 25x2 mm
- Contraction section: 20x2 mm
- Expansion section: 32x2 mm
- Valve sections: 20x2 mm
- Elbows: 90°

Delivery

The system is delivered fully assembled, factory-tested, and ready for operation.
