References :

• MSO22-070 2 voies, 70 MHz
• MSO22-100 2 voies, 100 MHz
• MSO22-200 2 voies, 200 MHz
• MSO22-350 2 voies, 350 MHz
• MSO22-500 2 voies, 500 MHz
• MSO24-070 4 voies, 70 MHz
• MSO24-100 4 voies, 100 MHz
• MSO24-200 4 voies, 200 MHz
• MSO24-350 4 voies, 350 MHz
• MSO24-500 4 voies, 500 MHz

Reclaim valuable bench space without sacrificing performance. At just 38 mm thick and weighing less than 1.8 kg, the 2 Series MSO is a fully featured mixed signal oscilloscope with an intuitive touchscreen interface. It delivers real-time measurement performance in a compact, tablet-like form factor.

Whether in the lab, classroom, or in the field, the 2 Series MSO is engineered to meet today’s measurement challenges with precision and reliability.

Analog Input Channels :

2 or 4 analog inputs

Bandwidth Options :

70 MHz, 100 MHz, 200 MHz, 350 MHz, or 500 MHz

Sample Rate :

• 2.5 GS/s (half channels)
• 1.25 GS/s (all channels)

Record Length :

10 Mpoints per channel

Vertical Resolution :

• 8-bit ADC
• Up to 16-bit in High Resolution mode

Standard Triggering Capabilities

Edge, Pulse Width, Runt, Timeout, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus

Standard Analysis Features

• Cursors: Waveform, Vertical Bars, Horizontal Bars, Combined V&H
• Measurements: 36 automated measurements
• Plots: XY mode, Pass/Fail limit testing
• Math: Basic waveform arithmetic, FFT, advanced equation editor
• Search: Search using any trigger condition

Display

• 10.1” (25.6 cm) color TFT display
• WXGA resolution (1280 × 800)
• Multi-touch capacitive touchscreen

Connectivity

• USB 2.0 device port (1)
• USB 2.0 host port
• LAN (10/100 Base-T Ethernet)

Mounting & Security

• VESA mount (100 mm × 100 mm)
• Kensington security lock

Standard Probes

One TPP0200 200 MHz 10:1 passive voltage probe per channel

Optional Features

Serial Triggering & Decoding

I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, LIN, SENT

Digital Channels

16 digital inputs

Arbitrary Function Generator

• 50 MHz signal generation
• Waveforms: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC, Gaussian, Lorentz, Exponential Rise/Fall, Sinc, Noise, Half-Sine, Cardiac

Digital Pattern Generator

• 4-bit
• User-defined, manual, toggle modes

Digital Voltmeter

• 4-digit DC+AC RMS, DC, AC measurements
• 5-digit frequency counter

Trigger Frequency Counter

8-digit resolution

Battery Pack (Optional)

• Dual battery slots with hot-swap capability
• Up to 8 hours of typical operation (with two batteries)

Remote Operation

Remote viewing and control via network connection using VNC (Virtual Network Computing).

Optional Collaborative Tools :

TekDrive™
Cloud-based waveform storage and recall. Share waveforms, setups, and screenshots securely with your team.

TekScope™
Basic instrument control and waveform transfer to PC. Perform advanced offline analysis including protocol decoding and automated measurements.

References

,

• GDS-912 : Oscilloscope 100 MHz, 2 channels
• GDS-912G : Oscilloscope 100 MHz, 2 channels, with a 25 MHz AWG.

Key Features

• Bandwidth: 100 MHz
• Sample Rate: Up to 1 GS/s
• Channels: 2
• Rise Time: ≤ 3.5 ns
• Bandwidth Limit: 20 MHz
• Vertical Resolution (A/D): 8-bit
• Maximum Input Voltage: ≤ 300 Vrms
• Time Base Range: 2 ns/div to 1000 s/div
• Memory Depth: 20 Mpts
• Display: 7-inch LCD (800 × 480 resolution)
• Communication Interface: USB 2.0 (Host / Device)

Built-in Waveform Generator (GDS-912G)

• Frequency Range: Up to 25 MHz
• Supported Waveforms: Sine, Square, Ramp, Pulse, and Arbitrary

References :

GDS-3352A Oscilloscope 350 MHz, 2-channel

GDS-3354A Oscilloscope 350 MHz, 4-channel

GDS-3652A Oscilloscope 650 MHz, 2-channel

GDS-3654A Oscilloscope 650 MHz, 4-channel

GDS-3102A Oscilloscope 1 GHz, 2-channel

GDS-3104A Oscilloscope 1 GHz, 4-channel

Technical Advantages

• Wide bandwidth of 1 GHz, 650 MHz or 350 MHz, with a two-channel or four-channel configuration, enabling accurate analysis of high-frequency signals.
• High real-time sampling rate of up to 5 GSa/s on a single channel and 2.5 GSa/s on all channels, ensuring faithful acquisition of fast and transient signals.
• Deep memory of 200 Mpts per channel, allowing long record lengths and detailed waveform analysis.
• High waveform refresh rate of up to 200'000 waveforms per second (wfm/s), making it easier to detect infrequent and intermittent events.
• Large 10.2-inch TFT color LCD display (800 × 480), providing clear and comfortable waveform visualization.
• Advanced signal search functions, optimizing record length efficiency and enabling rapid identification of relevant events.
• 38 automatic measurement functions, offering a wide range of analysis options for fast and reliable signal evaluation.
• High-resolution acquisition mode, improving measurement accuracy and reducing noise for enhanced signal fidelity.
• Triggering and serial bus decoding capabilities for I²C, UART, CAN, and LIN, ideal for embedded and industrial applications.
• Integrated dual-channel spectrum analyzer (DC to 2.5 GHz) with spectrogram display, allowing simultaneous time- and frequency-domain analysis.
• Built-in two-channel arbitrary waveform generator, 25 MHz, for flexible signal generation and functional testing.
• Optional advanced features:
  • Power analysis package with 13 dedicated measurement functions
  • 16-channel logic analyzer (MSO) for combined analog and digital signal analysis

Reference :

GDS-1102B Oscilloscope 100 MHz, 2-channel

GDS-1104B Oscilloscope 100 MHz, 4-channel

GDS-1202B Oscilloscope 200 MHz, 2-channel

Technical Advantages

• Bandwidth of 200 MHz and 100 MHz for 2-channel models
• 100 MHz bandwidth for 4-channel models
• Maximum sampling rate of 1 GSa/s
• Maximum memory depth of 10 Mpts per channel
• 7-inch WVGA LCD display (800 × 480 resolution)
• 256-color intensity-graded display for enhanced waveform visualization
• Advanced triggering and serial bus decoding for I²C, SPI, UART, CAN, and LIN
• FFT frequency-domain analysis with up to 1 Mpt record length
• Zero Key function for instant reset of horizontal timebase, vertical scale, and trigger level
• Compact and innovative exterior design, ideal for laboratory and portable applications

Ordering Information

• GDP-025 – 25 MHz High Voltage Differential Probe
• GDP-050 – 50 MHz High Voltage Differential Probe
• GDP-100 – 100 MHz High Voltage Differential Probe

Key Features

• Bandwidth options of 25 MHz, 50 MHz, and 100 MHz
• Differential voltage measurement up to 7,000 V (GDP-050 / GDP-100)
• Differential voltage measurement up to 1,400 V (GDP-025)
• Flexible attenuation options to support a wide range of applications
• Modular design with replaceable probe connectors for enhanced versatility and easy adaptation to different test environments

Applications

• Power supply design and development
• Power device evaluation
• Power converter design
• Floating and high-voltage measurements

Références

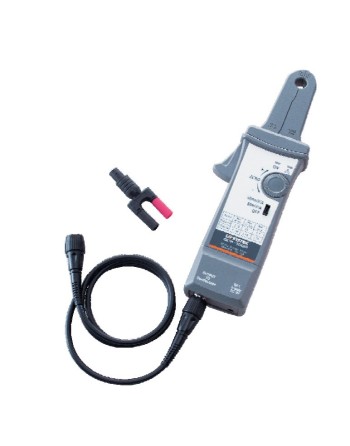

• GCP-300 : Current probe, 400 A, DC à 300 kHz
• GCP-500 : Current probe, 200 A, DC à 500 kHz
• GCP-1000 : Current probe, 70 A, DC à 1 MHz

References :

GDS-2102E Oscilloscope 100 MHz, 2-channel

GDS-2104E Oscilloscope 100 MHz, 4-channel

GDS-2202E Oscilloscope 200 MHz, 2-channel

GDS-2204E Oscilloscope 200 MHz, 4-channel

Technical Advantages

• Bandwidth options of 100 MHz or 200 MHz, with 2 or 4 input channels depending on the model
• Real-time sampling rate up to 1 GSa/s
• 10 Mpts memory depth per channel, combined with advanced VPO (Visual Persistence Oscilloscope) waveform display technology
• High waveform update rate of up to 120'000 waveforms per second (wfms/s) for accurate capture of transient events
• 8-inch WVGA TFT LCD display, providing excellent readability and user comfort
• FFT analysis with up to 1 M points, enabling high-resolution frequency-domain measurements
• Built-in digital high-pass and low-pass filters for advanced signal processing
• Segmented memory with up to 29'000 segments, along with waveform search functions for efficient detection and analysis of rare events
• Advanced triggering and serial bus decoding capabilities, including I²C, SPI, UART, CAN, and LIN
• Data logging function allowing long-term signal monitoring for up to 100 hours
• Remote data storage via Internet, enabling easy access, sharing, and off-site analysis

References

• MDO-2102EG – Oscilloscope 100 MHz, 2 channels, with Spectrum Analyzer and 2-channel 25 MHz Function Generator
• MDO-2104EG – Oscilloscope 100 MHz, 4 channels, with Spectrum Analyzer and 2-channel 25 MHz Function Generator
• MDO-2202EG – Oscilloscope 200 MHz, 2 channels, with Spectrum Analyzer and 2-channel 25 MHz Function Generator
• MDO-2204EG – Oscilloscope 200 MHz, 4 channels, with Spectrum Analyzer and 2-channel 25 MHz Function Generator
• MDO-2102EX – Oscilloscope 100 MHz, 2 channels, with Spectrum Analyzer, 2-channel 25 MHz Function Generator, True RMS 5,000-point digital multimeter (DMM), and a 5V/1A power supply
• MDO-2104EX – Oscilloscope 100 MHz, 4 channels, with Spectrum Analyzer, 2-channel 25 MHz Function Generator, True RMS 5,000-point digital multimeter (DMM), and a 5V/1A power supply
• MDO-2202EX – Oscilloscope 200 MHz, 2 channels, with Spectrum Analyzer, 2-channel 25 MHz Function Generator, True RMS 5,000-point digital multimeter (DMM), and a 5V/1A power supply
• MDO-2204EX – Oscilloscope 200 MHz, 4 channels, with Spectrum Analyzer, 2-channel 25 MHz Function Generator, True RMS 5,000-point digital multimeter (DMM), and a 5V/1A power supply

Technical Advantages

• Available bandwidths: 100 MHz and 200 MHz, with 2 or 4 channels
• Real-time sampling rate 1 GSa/s per channel
• Memory depth of 10 Mpoints per channel, featuring VPO waveform display technology
• Waveform update rate up to 120'000 wfms/s
• 8-inch WVGA TFT LCD display for clear and detailed visualization
• Free frequency response analysis software included
• FFT up to 1 Mpoint, providing high-resolution frequency-domain measurements
• Built-in digital filters: high-pass, low-pass, and band-pass
• 29,000 segmented memories and advanced waveform search functions
• Serial bus triggering and decoding: I²C, SPI, UART, CAN, and LIN
• Data recording function, allowing signal monitoring for up to 1,000 hours
• Network storage capability for efficient data management
• Mask test function for fast signal validation
• Integrated Spectrum Analyzer, DC to 500 MHz
• 2-channel Function Generator, 0.1 Hz to 25 MHz, 200 MSa/s, 14-bit resolution
• Waveform types: Sine, Square, Pulse, Ramp, DC, Noise, Sinc, Gaston, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac

Built-in digital multimeter and a power supply (MDO-2000EX Series)

• True RMS 5'000-point digital multimeter
• 5V/1A power supply

References :

• TMDP0200 25x/250x, 750 V, 200 MHz, TekVPI
• THDP0200 50x/500x, 1'500 V, 200 MHz, TekVPI
• THDP0100 100x/1000x, 6'000 V, 100 MHz, TekVPI

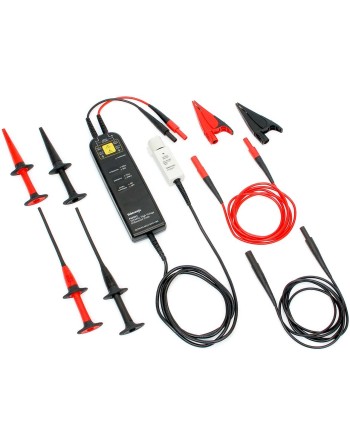

• P5200A 50x/500x, 1'300 V, 50 MHz, BNC
• P5202A 20x/200x, 640 V, 100 MHz, TekProbe
• P5205A 50x/500x, 1'300 V, 100 MHz, TekProbe
• P5210A 100x/1000x, 5'600 V, 50 MHz, TekProbe

General Description

High-voltage differential probes provide a professional and safe solution for measuring high-voltage electrical signals in demanding environments. They are designed to deliver accuracy, reliability, and safety while enabling differential measurements on floating circuits using ground-referenced oscilloscopes.

Key Technical Specifications

Performance

• Bandwidth: up to 200 MHz
• Maximum differential voltage: up to 6'000 V (DC + peak AC)
• Common mode voltage: up to 2'300 V RMS

Key Features

• Overrange indicator
• Safety certified
• Switchable attenuation
• Switchable bandwidth limit

Applications

• Floating measurements
• Switching power supply design
• Motor drive design
• Electronic ballast design
• CRT display design
• Power converter design and service
• Power device evaluation

References

• MPO-2202P: 200 MHz, 2 channels – Pro Version
• MPO-2204P: 200 MHz, 4 channels – Pro Version

Programmable Multifunction Oscilloscope

Key features

• Bandwidth: 200 MHz
• Advanced automation: Python scripting support for remote control and automated testing
• Serial bus triggering and decoding: I²C, SPI, UART, CAN, LIN
• Extended decoding capabilities: CAN FD, FlexRay, USB 2.0 (Full Speed), USB Power Delivery, I²S
• Long-term data recording: signal change tracking and recording for up to 1'000 hours
• Integrated network storage function
• Built-in spectrum analyzer with spectrogram display
• Integrated arbitrary waveform generator: 25 MHz, 2 channels
• Built-in digital multimeter
• Integrated regulated power supply:
  • Dual-channel output
  • Continuously adjustable voltage from 1 V to 20 V
  • Adjustment resolution: 0.1 V
• Communication interfaces: LAN, USB Host / USB Device
• Display: 8-inch TFT color screen, WVGA resolution 800 × 480

References

• MSO-2102EA: 100 MHz oscilloscope, 2 channels, featuring an integrated 16-channel logic analyzer and a 25 MHz dual-channel function generator.
• MSO-2104EA: 100 MHz oscilloscope, 4 channels, featuring an integrated 16-channel logic analyzer and a 25 MHz dual-channel function generator.
• MSO-2202EA: 200 MHz oscilloscope, 2 channels, featuring an integrated 16-channel logic analyzer and a 25 MHz dual-channel function generator.
• MSO-2204EA: 200 MHz oscilloscope, 4 channels, featuring an integrated 16-channel logic analyzer and a 25 MHz dual-channel function generator.

Technical Advantages

• 100 MHz or 200 MHz bandwidth, with 2 or 4 channels depending on the model.
• The MSO-2000EA series combines a 16-channel logic analyzer with a dual-channel 25 MHz arbitrary waveform/function generator.
• Real-time sampling rate of 1 GSa/s per channel for 2-channel models; up to 1 GSa/s maximum for 4-channel models.
• Maximum memory depth of 10 Mpts with advanced VPO waveform display technology.
• Waveform update rate of up to 120'000 waveforms per second (wfm/s).
• 8-inch WVGA TFT LCD display for clear and detailed signal visualization.
• Free frequency response analysis software included.
• FFT up to 1 M points for high-resolution frequency-domain measurements.
• Integrated high-pass, low-pass, and band-pass filter functions.
• Up to 29,000 segmented memory records with advanced waveform search capability.
• Comprehensive serial bus triggering and decoding: I²C, SPI, UART, CAN, and LIN.
• Long-term data logging function, enabling signal monitoring for up to 100 hours.
• Network storage support for seamless integration into connected test environments.

References :

GDS-2104A Oscilloscope 100 MHz, 4-channel

GDS-2204A Oscilloscope 200 MHz, 4-channel

GDS-2304A Oscilloscope 300 MHz, 4-channel

Technical Advantages

• Bandwidth: 300 MHz, 200 MHz, and 100 MHz with 4 input channels
• Sampling rate: Real-time 2 GSa/s; Equivalent-time up to 100 GSa/s
• Record length: 2 Mpts
• Vertical amplifier: 1 mV/div to 10 V/div
• Time base: 1 ns/div to 100 s/div
• Waveform update rate: 80,000 wfms/s for accurate signal capture
• Display: 8-inch high-resolution TFT LCD (800 × 600)
• Advanced memory features: Segmented memory and waveform search for optimized record length efficiency
• Navigation: Zoom window, read/pause functions for fast waveform analysis
• Automatic measurements: 36 functions with a variety of selectable parameters
• Optional modules: 8- or 16-channel logic analyzer, Function generator
• Standard interfaces: USB
• Optional interfaces: LAN / GPIB
• Bus analysis: Expandable CAN/LIN bus analysis with advanced logic, recording, DVM, and H-extension functions
