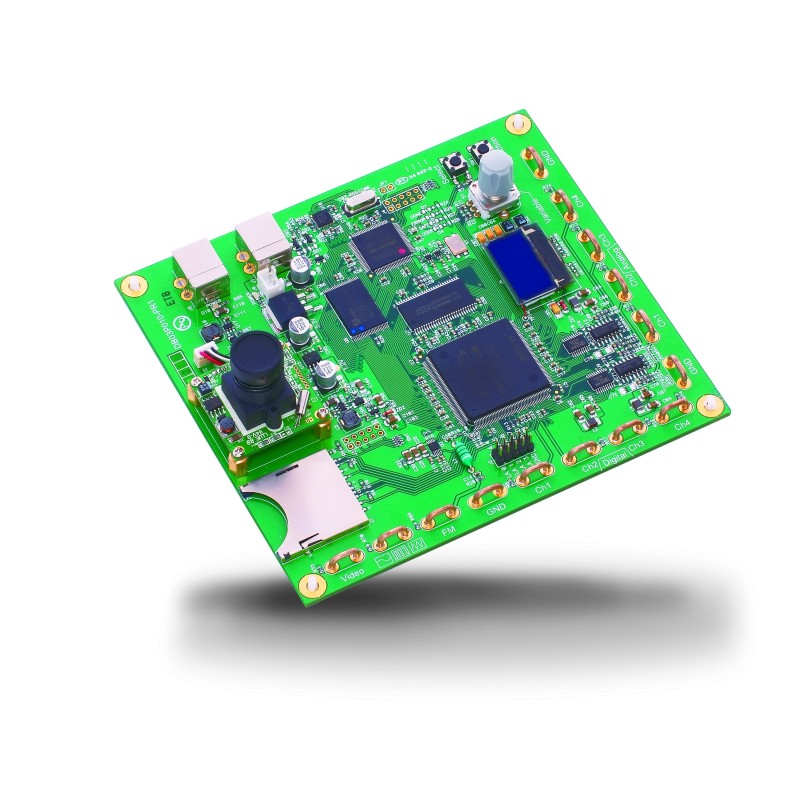

GDB-03 Oscilloscope Education and Training Kit



Logo GW Instek



Key Features

  • Designed for oscilloscope demonstration and training
  • Compatible with GDS-3000 / GDS-2000A / MSO-2000A / GDS-2000E series
  • Integrated signal generator for real-world waveform simulation
  • 5 V DC power input with USB power support (Type-B interface)



The GDB-03 Oscilloscope Education and Training Kit is a comprehensive learning solution designed for hands-on oscilloscope training and demonstration. It is fully compatible with the GDS-3000, GDS-2000A, MSO-2000A, and GDS-2000E series oscilloscopes.

This training kit enables users to efficiently master both fundamental and advanced Digital Storage Oscilloscope (DSO) operations. Through structured training procedures and real-world signal scenarios, users gain practical experience with key measurement techniques and advanced analysis functions commonly found in modern high-performance oscilloscopes.

At the core of the GDB-03 is a versatile signal generator board capable of producing a wide range of waveforms that replicate real measurement conditions. Combined with a comprehensive training curriculum, the GDB-03 equips users with the skills and confidence needed to effectively operate DSOs in educational, laboratory, and professional environments.



Basic Oscilloscope Training

  • Lab 1: Connect and view a waveform
  • Lab 2: Probe compensation (1 kHz square wave)
  • Lab 3: Adjust waveform scale and position (square wave)
  • Lab 4: Manual waveform measurement (square wave; frequency counter, cursor measurement)
  • Lab 5: Automatic measurement (including noise function; auto measurement and cursor measurement)
  • Lab 6: VPO (VPO signal, color, gray mode)
  • Lab 7: Autoset function (fit screen, AC priority)
  • Lab 8: Automatic range
  • Lab 9: Save data using the hardcopy function



Advanced Oscilloscope Training

  • Lab 1: Automatic measurement (gating measurement)
  • Lab 2: Peak detect mode
  • Lab 3: Low-speed signal measurement
  • Lab 4: Noisy signal measurement
  • Lab 5: Zoom timebase function
  • Lab 6: Transient signal measurement
  • Lab 7: Lissajous waveform and phase measurement
  • Lab 8: Runt trigger
  • Lab 9: Video trigger
  • Lab 10: Rise and fall trigger
  • Lab 11: Pulse-width trigger
  • Lab 12: Hold-off function
  • Lab 13: Split window 1
  • Lab 14: Split window 2
  • Lab 15: UART signal
  • Lab 16: I²C signal
  • Lab 17: SPI signal
  • Lab 18: CAN signal
  • Lab 19: LIN signal



GBB-03

Specific References

Download

GDB-03 - Brochure

Download (1.04MB)

GDB-03 - User Manual

Download (6.01MB)
