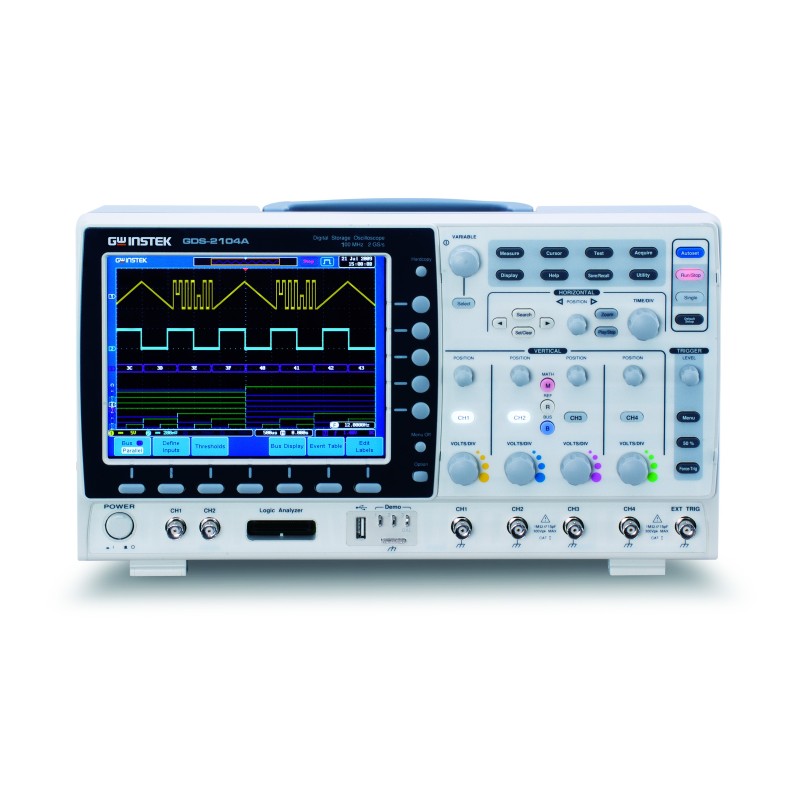

GDS-2000A Series - Oscilloscope 100/200/300 MHz, 4-channel

Name: GDS-2000A Series - Oscilloscope 100/200/300 MHz, 4-channel
Brand: GW Instek
SKU: GDS-2000A Series

References :

GDS-2104A Oscilloscope 100 MHz, 4-channel

GDS-2204A Oscilloscope 200 MHz, 4-channel

GDS-2304A Oscilloscope 300 MHz, 4-channel

Technical Advantages

Bandwidth: 300 MHz, 200 MHz, and 100 MHz with 4 input channels
Sampling rate: Real-time 2 GSa/s; Equivalent-time up to 100 GSa/s
Record length: 2 Mpts
Vertical amplifier: 1 mV/div to 10 V/div
Time base: 1 ns/div to 100 s/div
Waveform update rate: 80,000 wfms/s for accurate signal capture
Display: 8-inch high-resolution TFT LCD (800 × 600)
Advanced memory features: Segmented memory and waveform search for optimized record length efficiency
Navigation: Zoom window, read/pause functions for fast waveform analysis
Automatic measurements: 36 functions with a variety of selectable parameters
Optional modules: 8- or 16-channel logic analyzer, Function generator
Standard interfaces: USB
Optional interfaces: LAN / GPIB
Bus analysis: Expandable CAN/LIN bus analysis with advanced logic, recording, DVM, and H-extension functions

Bandwidth: 100 MHz

Real-Time Sampling Rate of 2 GSa/s and Bandwidth up to 300 MHz

The GDS-2000A series digital memory oscilloscope offers configurations with up to 4 channels and multiple bandwidth options: 100 MHz, 200 MHz, and 300 MHz. Each model provides a maximum real-time sampling rate of 2 GSa/s and an equivalent-time sampling rate of up to 100 GSa/s.

Equipped with an 8-inch high-resolution TFT LCD display (800 × 600), a vertical range of 1 mV/div to 10 V/div, and a time base of 1 ns/div to 100 s/div, the GDS-2000A accurately captures complex and fast-changing waveforms, even for challenging signals.

2 Mpts Record Length, Segmented Memory, and Waveform Search

The GDS-2000A comes standard with a 2 Mpts record length per channel and advanced features such as segmented memory and waveform search:

Segmented memory can be divided into 2048 sections, allowing users to capture only relevant events while ignoring unrelated signals, optimizing memory efficiency.
The waveform search function automatically locates and marks sections that meet user-defined conditions throughout the memory.
The zoom window and Play/Pause button enable rapid navigation through all displayed waveforms, providing precise control for signal analysis.

Standard Accessories

User manual on CD
Power cord
Switchable passive probes (10:1 / 1:1):
- GTP-150A-2, 150 MHz for GDS-2104A (1 per channel)
- GTP-250A-2, 250 MHz for GDS-2204A (1 per channel)
- GTP-350A-2, 350 MHz for GDS-2304A (1 per channel)
