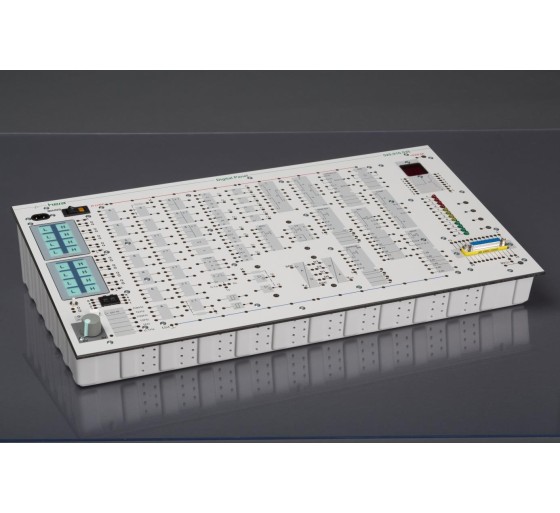

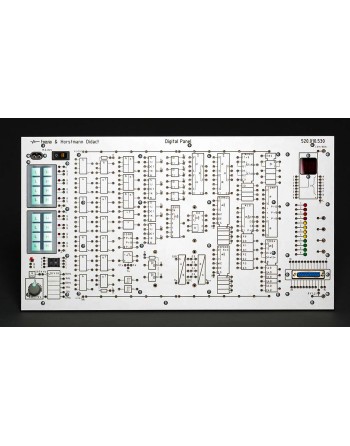

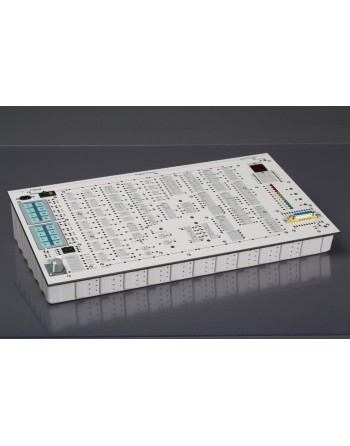

Educational Module – Fundamentals of Digital Technology






Reference :

  • 520.010.530 – Module "Fundamentals of Digital"



Overview

The digital panel is designed to provide a comprehensive understanding of commonly used integrated circuits and their implementation using logic gates such as NAND, NOR, XOR, and XNOR.

It is ideally suited for developing practical skills in digital electronics, non-contact control systems, and microcomputer technology.



Learning Content

  • Boolean algebra and Karnaugh diagrams
  • NAND and NOR technologies
  • XOR and XNOR gates (equivalence / anti-equivalence)
  • TTL 74 series (pull-up / pull-down resistors)
  • Schmitt trigger (inverting / non-inverting)
  • SR flip-flops using NAND/NOR gates
  • SR, D, and JK flip-flops
  • Monostable circuits
  • Code converters (8421 BCD to Excess-3, decimal, 7-segment)
  • Arithmetic circuits and carry handling
  • Arithmetic Logic Unit (ALU 74HC/HCT181)
  • Counters (up, down, modulo-n, PLC applications)
  • Registers and shift registers
  • Multiplexers and demultiplexers
  • AD/DA converters



System Composition

Input Elements

  • 8 high-level and 8 low-level membrane push buttons
  • Debounced push button
  • Dual hexadecimal coding switch
  • Signal source: 0 to 5 VDC
  • TTL-compatible square wave generator
  • Pluggable frequency divider

Processing Elements

  • AND/NAND gates (7 units)
  • AND/NAND gates with pull-up resistors
  • OR/NOR gates (5 units)
  • OR/NOR gates with pull-up resistors
  • AND/OR combinations
  • Equivalence and anti-equivalence functions
  • Integrated circuits

Output Elements

  • 7-segment display with dual decoder for hexadecimal codes
  • Sub-D 25-pin interface for expansion



Integrated Front Panel Functional Modules

  • Generator with divider
  • Input keypad
  • Signal sources
  • Coding switch
  • LED indicators
  • 7-segment display
  • Sub-D interface
  • Logic gates
  • Comparators
  • Flip-flops
  • Adder
  • Monostable
  • Multiplexer / demultiplexer
  • Shift register
  • ALU
  • RAM



Technical Specifications

  • Connection via 2 mm safety leads and plugs
  • Operating voltage: 110 to 230 V, 50/60 Hz
  • Dimensions: 532 x 297 mm (W x H)



Scope of Supply

  • 520.010.530 Digital panel
  • 520.012.000 Cable and connector set
  • 520.018.001 Instruction manual with digital support

Note: A multimeter is required for performing experiments.

520.010.530

Data sheet

HS
90230010

Specific References

MPN
520.010.530
