GDP-050 / GDP-100 High voltage differential probes
search
  • GDP-050 / GDP-100 High voltage differential probes

GDP-Series - High voltage differential probes

Bandwidth
Voltage



Logo GW Instek



Ordering Information

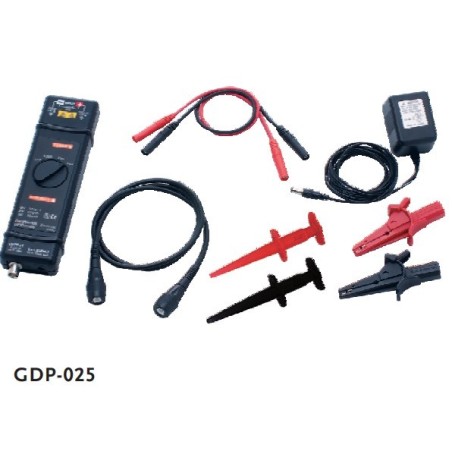

  • GDP-025 – 25 MHz High Voltage Differential Probe
  • GDP-050 – 50 MHz High Voltage Differential Probe
  • GDP-100 – 100 MHz High Voltage Differential Probe



Key Features

  • Bandwidth options of 25 MHz, 50 MHz, and 100 MHz
  • Differential voltage measurement up to 7,000 V (GDP-050 / GDP-100)
  • Differential voltage measurement up to 1,400 V (GDP-025)
  • Flexible attenuation options to support a wide range of applications
  • Modular design with replaceable probe connectors for enhanced versatility and easy adaptation to different test environments



Applications

  • Power supply design and development
  • Power device evaluation
  • Power converter design
  • Floating and high-voltage measurements

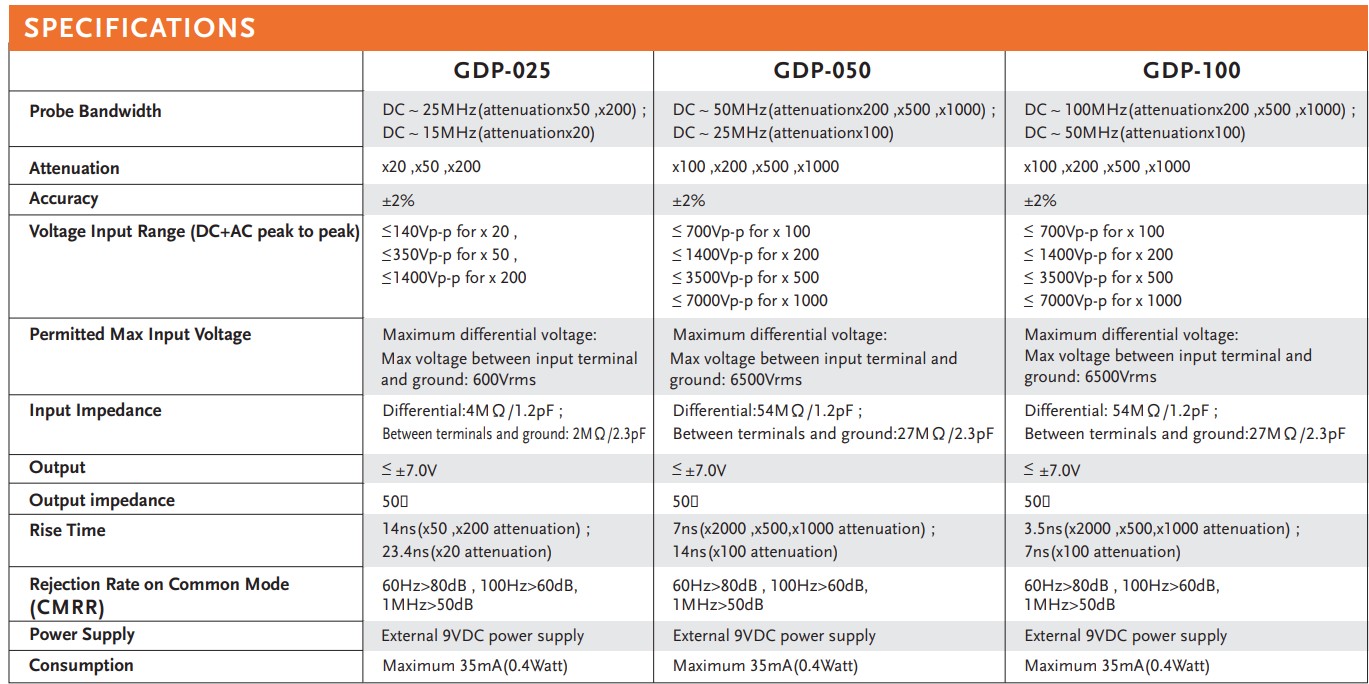

GW Innstek GDP Series High Voltage diffrential probes



The GDP series probes offer bandwidth options of 25 MHz, 50 MHz, and 100 MHz, enabling users to safely perform high-voltage measurements on floating circuits.

These high-voltage differential probes convert floating signals into low-voltage, ground-referenced signals, allowing them to be displayed safely and accurately on any ground-referenced oscilloscope.

The GDP-025 / GDP-050 / GDP-100 models feature user-selectable attenuation settings, providing exceptional versatility for a wide range of applications.

Each probe is supplied with probe tip accessories, designed to facilitate measurements on both small and large components, even in confined or hard-to-reach areas.

In addition, the GDP-025 / GDP-050 / GDP-100 include an over-range indicator that alerts the user when the input signal exceeds the probe’s dynamic range, ensuring reliable and secure operation.

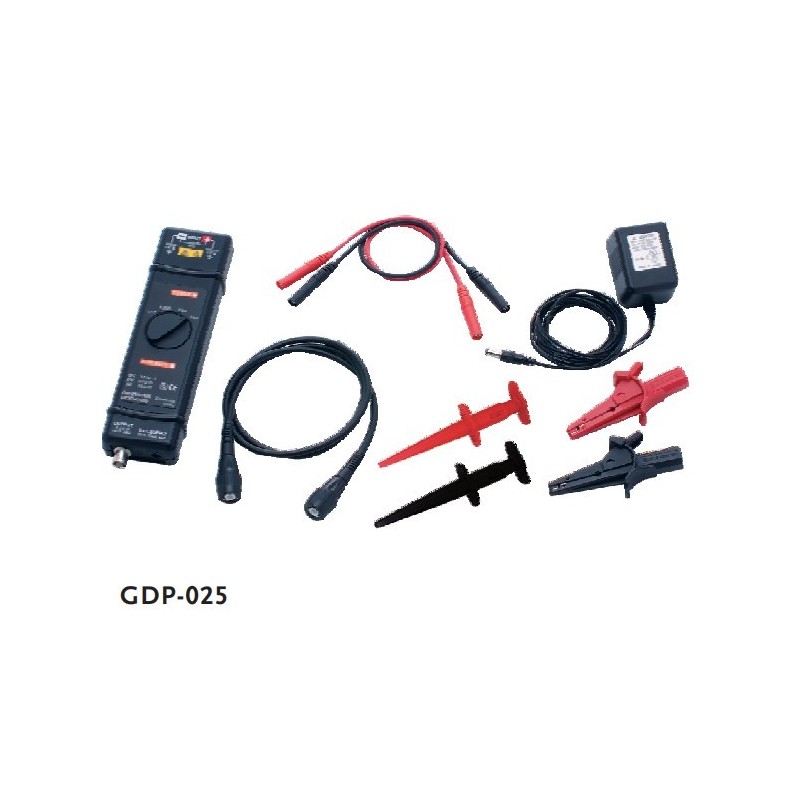

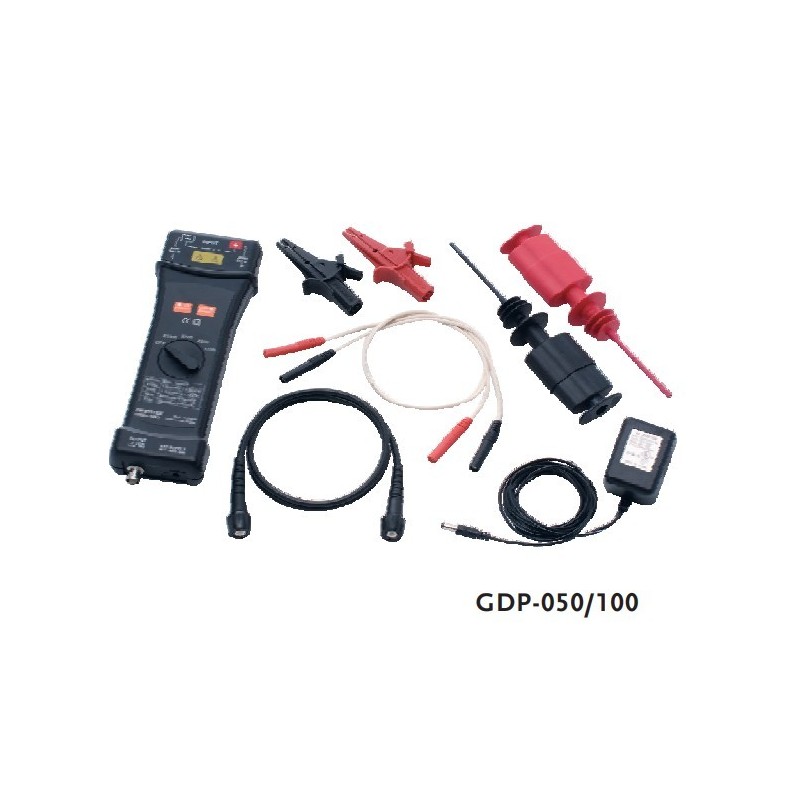

GDP-100

Specific References

Download

GDP Serie - Brochure

Download (2.68MB)

GDP-Series - User Manual

Download (1.12MB)

4 other products in the same category

GCP-Series - Current Probes
Quick view

GCP-Series - Current Probes



Logo GW Instek



References

  • GCP-0275 : DC to 2 MHz, 500 A
  • GCP-0550 : DC to 5 MHz, 350 A
  • GCP-2525 : DC to 25 MHz, 170 A

GCP Series Current Probe

The GCP Series Current Probe delivers precise and reliable AC/DC current measurements for demanding testing environments. Designed for ease of use and performance stability, it is an ideal solution for engineers and technicians working with power electronics and industrial systems.

Key Features

  • Accurate and easy-to-use AC/DC current measurement
  • Low noise and minimal DC drift for stable, repeatable results
  • Split-core probe head for quick and convenient connection to conductors

Applications

  • Power supplies
  • Motor drives
  • Semiconductor devices
  • Power inverters and converters
  • Industrial and consumer electronics
  • Transportation systems
  • Electronic ballasts



P5205A Differential Probe
  • New
Quick view

Tektronix High-Voltage Differential Probes



Logo Tektronix

References :

  • TMDP0200 25x/250x, 750 V, 200 MHz, TekVPI
  • THDP0200 50x/500x, 1'500 V, 200 MHz, TekVPI
  • THDP0100 100x/1000x, 6'000 V, 100 MHz, TekVPI
  • P5200A 50x/500x, 1'300 V, 50 MHz, BNC
  • P5202A 20x/200x, 640 V, 100 MHz, TekProbe
  • P5205A 50x/500x, 1'300 V, 100 MHz, TekProbe
  • P5210A 100x/1000x, 5'600 V, 50 MHz, TekProbe



General Description

High-voltage differential probes provide a professional and safe solution for measuring high-voltage electrical signals in demanding environments. They are designed to deliver accuracy, reliability, and safety while enabling differential measurements on floating circuits using ground-referenced oscilloscopes.



Key Technical Specifications

Performance

  • Bandwidth: up to 200 MHz
  • Maximum differential voltage: up to 6'000 V (DC + peak AC)
  • Common mode voltage: up to 2'300 V RMS

Key Features

  • Overrange indicator
  • Safety certified
  • Switchable attenuation
  • Switchable bandwidth limit



Applications

  • Floating measurements
  • Switching power supply design
  • Motor drive design
  • Electronic ballast design
  • CRT display design
  • Power converter design and service
  • Power device evaluation
GDB-03 Oscilloscope Education and Training Kit
Quick view

GDB-03 Oscilloscope Education and Training Kit



Logo GW Instek



Key Features

  • Designed for oscilloscope demonstration and training
  • Compatible with GDS-3000 / GDS-2000A / MSO-2000A / GDS-2000E series
  • Integrated signal generator for real-world waveform simulation
  • 5 V DC power input with USB power support (Type-B interface)



GCP-300/500 /1000 - Current Probes
  • New
Quick view

GCP-300/500 /1000 - Current Probes



Logo GW Instek



Références

  • GCP-300 : Current probe, 400 A, DC à 300 kHz
  • GCP-500 : Current probe, 200 A, DC à 500 kHz
  • GCP-1000 : Current probe, 70 A, DC à 1 MHz



The GCP-300, GCP-500, and GCP-1000 current probes are high-precision instruments designed for accurate AC and DC current measurements. With wide bandwidth and versatile measurement ranges, they are ideal for industrial, electronic, and laboratory applications.



Key Features

Bandwidth
  • GCP-300: DC to 300 kHz
  • GCP-500: DC to 500 kHz
  • GCP-1000: DC to 1 MHz
Maximum Measurement Range
  • GCP-300: 400 A (10 mV/A) and 40 A (100 mV/A)
  • GCP-500: 200 A (20 mV/A) and 20 A (200 mV/A)
  • GCP-1000: 70 A (500 mV/A) and 7 A (50 mV/A)
Additional Features
  • Overload indicator
  • AC and DC current measurement capability
  • High accuracy across wide frequency ranges



Applications

  • Harmonic current measurement
  • Inrush current analysis
  • Current ripple and noise measurement



We use cookies to improve our services, make personal offers, and enhance your experience. If you do not accept optional cookies below, your experience may be affected. If you want to know more, please, read the Cookie Policy.
