Reference : FM-100.02

Product Description

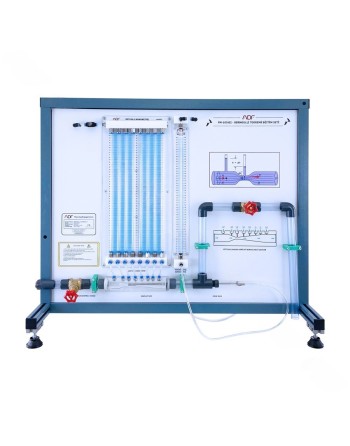

The FM-100.02 experimental unit is designed to demonstrate Bernoulli’s principle, which describes the relationship between fluid flow velocity and pressure. According to this principle, an increase in flow velocity results in a decrease in static pressure, while the total pressure remains constant. This is a direct application of the conservation of energy in fluid flow.

This educational unit is ideal for technical training and laboratory environments, enabling clear visualization and accurate measurement of pressure variations within a Venturi nozzle.

Installation and Supply

The experimental unit can be easily and securely positioned on the working surface of the FM-100B base module. Water supply and flow rate measurement are provided directly by this module, ensuring simple, efficient, and reliable operation in laboratory and educational environments.

Reference : FM-300

Reference : FM-150.08

Overview

The training unit is designed to demonstrate Bernoulli’s theorem and to perform flow measurement calculations using a variety of flow measurement devices.

Features

This self-contained system includes its own storage tank, integrated pump, and support frame, allowing it to operate independently without the need for external equipment.

Reference : FM-303

Référence : FM-100.08

General Description

The FM-100.08 is an experimental unit designed for the comprehensive study of centrifugal pumps. This turbomachine enables users to understand fluid transport principles and to record typical pump characteristic curves.

The unit includes a self-priming centrifugal pump, a ball valve on the outlet side, and manometers on both inlet and outlet sides. It is powered by an asynchronous motor with continuously adjustable speed via a frequency converter.

Benefits

• Ideal for education and technical training
• Clear visualization of pump performance
• Precise and easy adjustments
• Robust and safe design

Installation and Supply

The experimental unit can be easily and securely positioned on the working surface of the FM-100B base module. Water supply and flow rate measurement are provided directly by this module, ensuring simple, efficient, and reliable operation in laboratory and educational environments.

Reference : FM-100B

General Description

The FM-100B Fundamental Fluid Mechanics Training Set is a base module designed to supply various experimental units in fluid mechanics. It provides a complete educational platform featuring a closed water circuit with a storage tank, submersible pump, and measuring tank.

This system is ideal for engineering laboratories and technical training environments, enabling hands-on experiments and accurate analysis of hydraulic phenomena, including volumetric flow rate measurement and flow behavior.

Compatible Modules

The FM-100B unit supports the following experimental modules:

• FM-100.02 – Bernoulli’s Principle
• FM-100.03 – Osborne Reynolds Experiment
• FM-100.04 – Flow Measurement Methods
• FM-100.07 – Cavitation Module
• FM-100.08 – Centrifugal Pumps
• FM-100.09 – Series and Parallel Pumps
• FM-100.10 – Measurement of Jet Forces
• FM-100.12 – Pipe Friction (Laminar & Turbulent Flow)
• FM-100.13 – Hydrostatic Pressure in Liquids
• FM-100.14 – Stability of Floating Bodies
• FM-100.17 – Streamline Visualization
• FM-100.21 – Pelton Turbine Module
• FM-100.22 – Francis Turbine Module
• FM-100.23 – Flow Visualization in Channels
• FM-100.25 – Energy Losses in Bends and Fittings
• FM-100.25C – Pressure Losses in Piping Systems

Reference : FM-100.07

Product Description

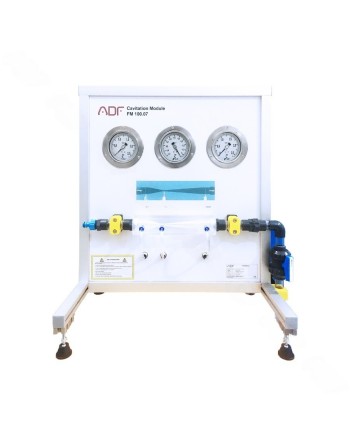

The FM-100.07 is an educational unit designed to demonstrate cavitation phenomena in fluid systems. Cavitation occurs when the static pressure drops to the vapor pressure due to increased flow velocity, leading to the formation of vapor bubbles.

These bubbles collapse when pressure rises again, making the process observable and measurable.

Installation and Supply

The experimental unit can be easily and securely positioned on the working surface of the FM-100B base module. Water supply and flow rate measurement are provided directly by this module, ensuring simple, efficient, and reliable operation in laboratory and educational environments.

Reference : FM-100.10

General Description

The FM-100.10 is an educational and experimental unit designed to study forces generated by fluid jets. When a flowing fluid is accelerated, decelerated, or deflected, its velocity changes, resulting in a variation of momentum and consequently producing measurable forces.

In practical engineering applications, these forces are used to convert kinetic energy into mechanical work, such as in Pelton turbines.

Operating Principle

The unit generates a water jet directed at interchangeable deflectors. The jet is deflected at different angles, producing forces that can be measured.

The jet force is adjusted by varying the flow rate. Experiments allow investigation of:

• The influence of flow velocity
• The effect of flow rate
• The impact of different deflection angles

Measured forces are compared with theoretical values calculated using the momentum equation.

Scope of Delivery

• Transparent tank for visual observation
• Nozzle for jet generation
• 4 interchangeable deflectors
• Weight-loaded scale for force measurement
• Set of calibrated weights

Installation & Compatibility

The unit is designed for easy and secure placement on the FM-100B base module.

Water supply and flow rate measurement are provided by the base module. Alternatively, the unit can be operated using a laboratory water supply.

Référence : FM-151

Reference : FM-100.03

General Description

The FM-100.03 - Osborne Reynolds Experiment is a didactic training unit designed to clearly demonstrate the flow characteristics of liquids. It enables the visualization of laminar and turbulent flow regimes through a vertical representation of flow lines.

Educational Benefits

• Direct visualization of fluid dynamics phenomena
• Clear understanding of flow regimes
• Safe and easy operation
• Ideal for teaching laboratories and technical training centers

Applications

• Fluid mechanics education
• Hydraulic engineering laboratory work
• Academic demonstrations
• Technical and university training programs

Reference : FM-204

Overview

The FM-204 is a training unit designed for the comprehensive study of pressure losses in piping systems. It enables the visualization and analysis of hydraulic resistance effects caused by pipe elements such as elbows, valves, and cross-section variations.

With its modular design and interchangeable components, this system is ideal for technical and higher education laboratories.

When water flows through a piping system, hydraulic resistances lead to pressure losses, particularly at fittings, valves, and other pipe components.

The FM-204 unit is designed to study and visualize these pressure losses in various piping elements. This experimental setup enables the analysis of how different pipe geometries influence fluid flow.

Equipment Description

The FM-204 experimental unit consists of a pipe section incorporating several elements with different flow resistances, as well as contraction and expansion sections. A ball valve is also integrated into the system.

Pressure measuring points equipped with annular chambers are positioned upstream and downstream of the pipe elements to ensure accurate pressure measurements.

These measuring points can be connected in pairs to six tube manometers, allowing the determination of pressure losses across each piping element.

Educational Applications

- Study of major and minor pressure losses
- Flow analysis in different materials and pipe diameters
- Understanding pressure and flow behavior
- Practical training in measurement and instrumentation
- Fluid mechanics laboratory experiments

Reference : DM-102

Overview

The DM-102 Pump Variations Training Set is a comprehensive educational system designed for the study and analysis of various pump types and their operating principles.

Educational applications

• Study of centrifugal and positive displacement pumps
• Comparison of pump types
• Series and parallel operation
• Pipeline pressure losses
• Performance measurement (flow, pressure, torque, power)

Integrated pump types

Centrifugal pumps

Two centrifugal pumps allowing individual, series, or parallel operation.

Piston pump

Positive displacement pump for controlled flow experiments.

Side-channel pump

Self-priming, capable of handling gases depending on liquid level.

Drive system

Each pump is driven by a three-phase AC motor. Speed control is achieved via frequency converters.

Additional position

One free position with reversible motor allows integration of additional pumps.

Reference : FM-100.04

Product Description

Flow rate measurement is a fundamental aspect of measurement technology. The FM-100.04 experimental unit enables students to explore, understand, and apply various flow measurement methods in pipe systems.

Featuring transparent components and integrated measuring instruments, this unit allows direct visualization of internal processes, enhancing practical learning and comprehension of fluid mechanics principles.

Educational Applications

This unit is ideal for:

• Fluid mechanics laboratory experiments
• Technical and engineering education
• Demonstration of flow measurement principles
• Comparative analysis of measurement devices
