HS-105 - Efficiency in Heating Technology
Reference : HS-105

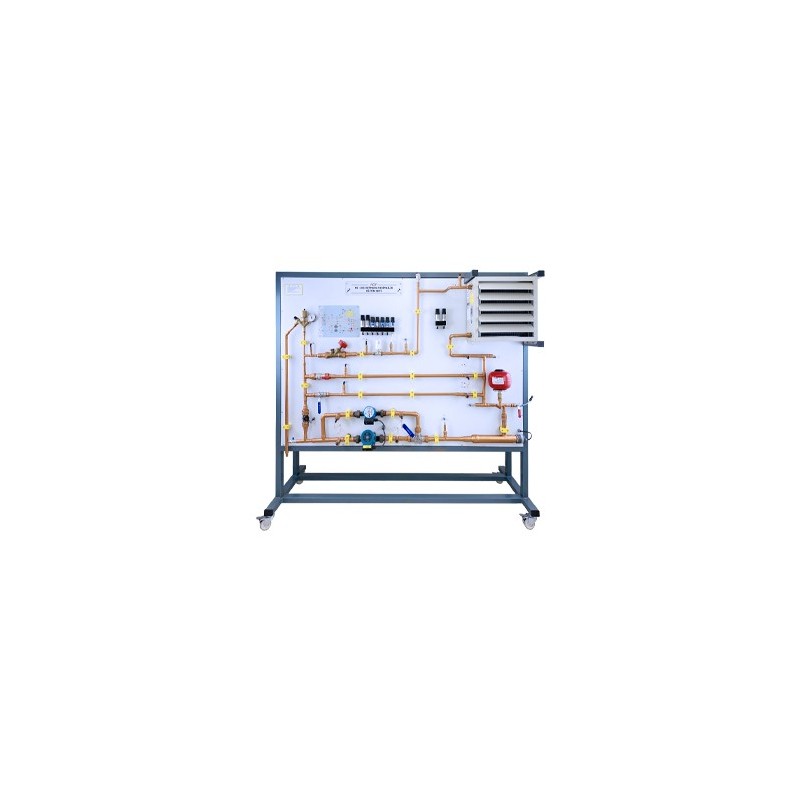

The HS-105 is a complete educational training system designed for the study of energy efficiency in heating technology. It features a fully functional closed-loop heating circuit for analyzing performance, pressure losses, and system behavior.
Equipped with advanced sensors and software, the system allows real-time visualization of energy flows, control response analysis, and comparison between different circulating pump technologies.
🎯 Educational Applications
- Heating system analysis
- Energy efficiency studies
- PID control training
- Pump technology comparison
🔧 Key Features
- Complete closed water circuit with circulating pump, electric heater, and convector
- Pressure loss analysis using 7 differential pressure sensors
- Energy flow measurement and visualization
- Comparison between conventional and differential pressure-controlled pumps
- Full control via PC (pumps, heater, fan)
- Real-time data transmission via Ethernet
📊 Instrumentation & Measurements
- 7 differential pressure sensors
- 4 temperature sensors
- 1 flow rate sensor
- 1 effective power sensor
💻 Software & Control
- ADF software with Ethernet data acquisition
- Compatible with Windows 8.1 and Windows 10
- Temperature control including:
- Two-point control
- Adjustable PID controller
- Setpoint adjustable from 0 to 80°C
⚙️ Technical Specifications
Conventional circulating pump
- Power consumption: 140 W
- Max. flow rate: 5 m³/h
- Max. head: 7 m
Differential pressure-controlled pump
- Power consumption: 4 to 50 W
- Max. flow rate: 3.5 m³/h
- Max. head: 6 m
Other components
- Electric heater: 2000 W
- Expansion vessel: 2 L
- Power supply: 230V / 50Hz / single phase
📏 Measuring Ranges
- Differential pressure: 5x 0–600 mbar, 2x 0–100 mbar
- Temperature: 0–100°C
- Flow rate: 0–50 L/min
- Effective power: 0–200 W
🛡️ Safety
Boiler safety group compliant with DIN 4751.
🖥️ Requirements
- PC with Windows operating system recommended
