- USG-LF44 : RF Signal Generator
Key Features

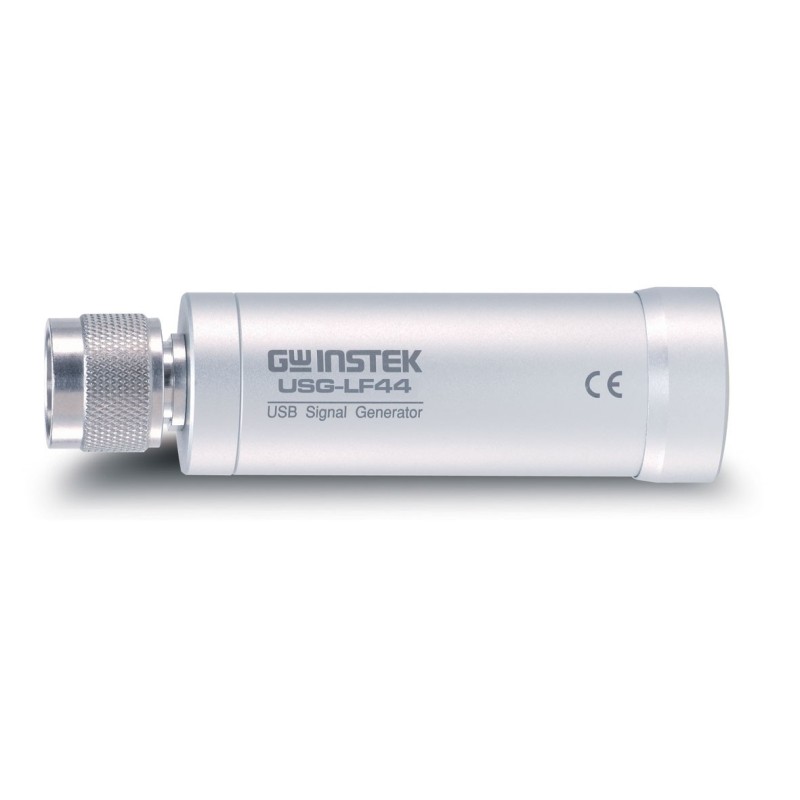

The USG-LF44 is a compact and versatile RF signal generator designed for laboratory testing, education, and RF system development. It delivers stable continuous wave (CW) signals across a wide frequency range, making it suitable for a variety of RF measurement and calibration applications.
- Frequency Range: 34.5 MHz to 4.4 GHz
- Output Power Range: –30 dBm to 0 dBm
- Signal Type: Continuous Wave (CW), unmodulated
- Operating Modes:
- Fixed Frequency
- Frequency Sweep
- Frequency Hopping
- Power Sweep
- Phase Noise: –107 dBc/Hz @ 100 kHz offset
- Frequency Resolution: 10 kHz
- USB Interface: Powered and controlled via PC USB connection
- PC Software: Compatible with multiple operating systems
The USG-LF44 provides a flexible and cost-effective solution for RF testing environments requiring reliable signal generation and easy PC integration.
USG-Series – Compact USB RF Signal Generators
GW Instek introduces the new USG-Series RF signal generator family, comprising five models designed to meet diverse application requirements. This pocket-sized, USB-powered signal generator covers a frequency range from 35 MHz to 4.4 GHz, providing a compact and flexible solution for laboratory, educational, and RF development environments.
The USG-Series delivers stable continuous wave (CW) outputs without modulation capability. Its built-in electronic attenuator enables adjustable output power from –30 dBm to 0 dBm. Multiple operating modes are supported, including:
- Fixed Frequency
- Frequency Sweep
- Frequency Hopping
- Power Sweep
With optimized frequency bandwidth control, the USG-Series achieves improved harmonic suppression performance.
Test measurements of the USG-LF44 demonstrate simultaneous frequency and power sweep operation across 35 MHz to 4.4 GHz and –30 dBm to 0 dBm. In the example result, the yellow trace represents the maximum hold measurement, while the pink trace indicates the signal output.
PC and Mobile Control
The included USG CD-ROM provides dedicated PC application software developed using Java architecture. Users must install Java to operate the USG PC software. The application supports multiple operating systems, including Windows, Linux, and macOS, via USB interface.
In addition, users can download the USG mobile application for smartphones and tablets running Android 4.0 or later. By using a USB-OTG cable, the device can be directly connected and controlled. The Android application is available via the Google Play Store.
Integration with Spectrum Analyzer
The USG signal generator can operate as a tracking generator for theGSP-730spectrum analyzer, enabling scalar network analyzer measurements.
The supplied CD-ROM also includes the Primary RF software for PC-based control. Using a Windows computer, users can control both the USG generator and the GSP-730 through the Primary RF interface. Installation of NI-488.2 software is required prior to installing Primary RF.
Standard Accessories
- USB cable
- CD-ROM with USG software
- Primary RF software (for GSP-730)
- User manual
Optional Accessories
- ADP-003 – 50 Ohm N-type (F) to SMA (F) Adapter
- GTL-303 – 50 Ohm SMA RF Cable (600 mm)
USG-LF44
Data sheet
- Frequency Range
- 35 MHz ~ 4400 MHz
- Output Power Range
- -30 dBm ~ 0 dBm
- Interfaces
- USB
- Weight
- ~100 g
