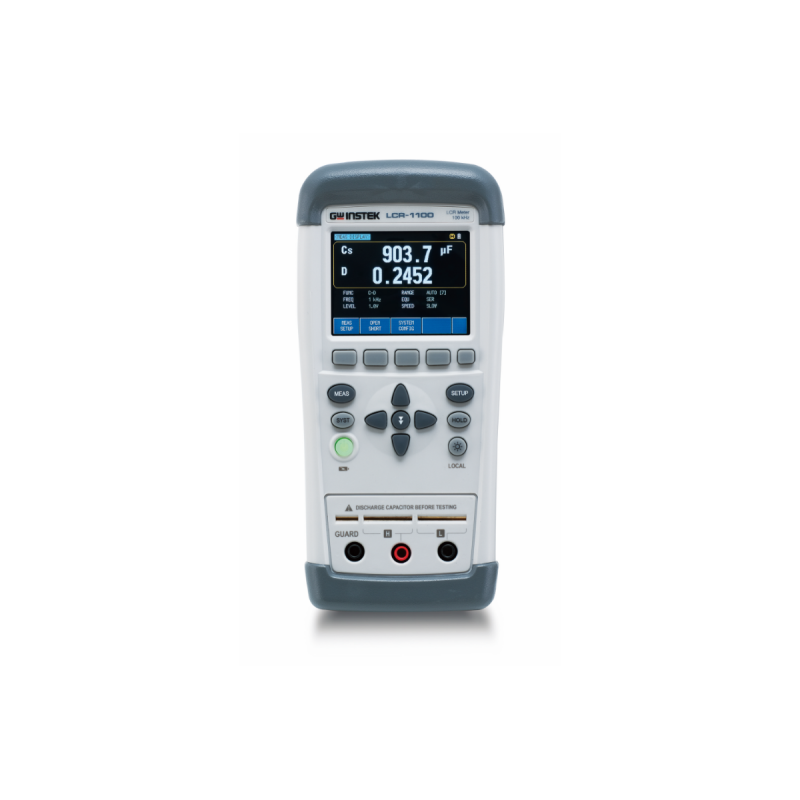

LCR-1100 Front view
search
  • LCR-1100 Front view
  • LCR-1000 Series – Handheld LCR Meter
  • LCR-1010 Rear view

LCR-1000 Series – Handheld LCR Meter

Max. Frequency Test



Logo GW Instek



References

  • LCR-1010 – 10 kHz Handheld LCR Meter
  • LCR-1100 – 100 kHz Handheld LCR Meter



Key Features

  • 2.8” TFT Touch LCD
  • 50,000 counts resolution on both primary and secondary displays
  • 0.2% basic accuracy
  • 6 or 8 selectable test frequencies depending on the model
  • 15 measurement combinations available
  • Selectable test levels:
    • AC: 0.3 V / 0.7 V / 1 Vrms
    • DC: ±1 V
  • Selectable measurement speeds:
    • Fast: 10 measurements per second
    • Slow: 2.5 measurements per second
  • Auto LCR Mode for automatic component identification
  • Data Hold function
  • USB interface (Virtual COM) for remote communication
  • Datalogging software available



Description

The LCR-1000 series from GW Instek is a line of handheld LCR meters featuring automatic real-time testing capabilities. The instrument is equipped with a TFT-LCD display and provides a 0.2% basic accuracy. Users can operate the device using either physical buttons or the touch screen for convenient and intuitive control.

Thanks to its high measurement accuracy and ease of use, the series is suitable for various applications including:

  • Maintenance and troubleshooting
  • Electronic component production
  • Schools and research institutes
  • Quality testing



The series includes two models:

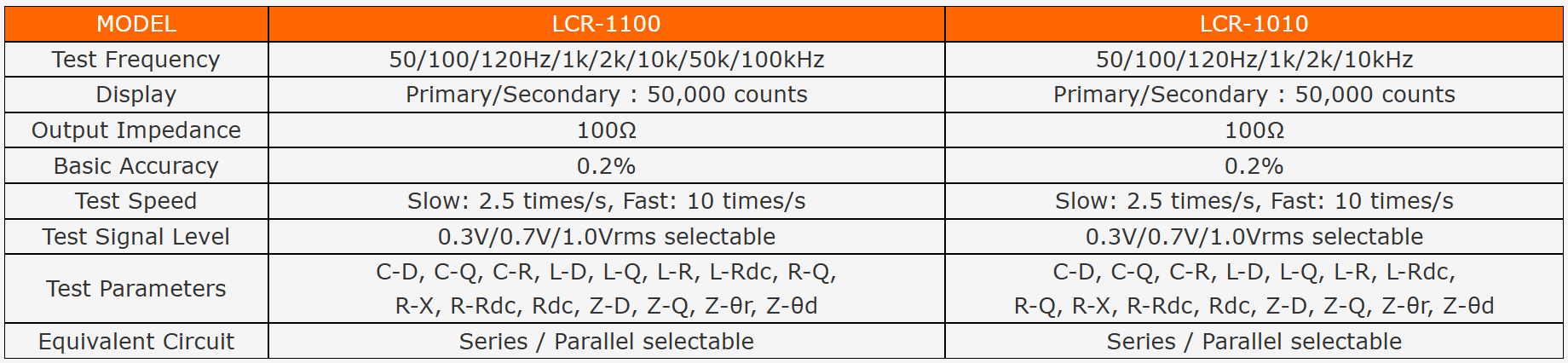

GW Instek LCR-1000 Series -Tableau comparatif

  • LCR-1100 – Test frequency up to 100 kHz
  • LCR-1010 – Test frequency up to 10 kHz

The instruments provide selectable test voltages (0.3 / 0.7 / 1.0 Vrms) and series or parallel equivalent circuits, allowing automatic measurement of:

  • Capacitance (C)
  • Inductance (L)
  • Resistance (R)
  • Reactance
  • Impedance
  • Quality factor (Q)
  • Dissipation factor (D)
  • Phase angle
  • DC resistance

With 50,000 display counts for both primary and secondary parameters and 0.2% basic accuracy, the series supports both 2-wire and 5-wire measurement methods.

It also includes a comparator function and data hold function to meet various component testing and measurement requirements.

The entire series is equipped with USB-HID and USB-VCOM interfaces. A simple and practical free PC software is provided, and SCPI-compatible remote control commands are available for users who want to develop their own software for data acquisition applications.



Ordering Information

  • LCR-1100 – 100 kHz Handheld LCR Meter
  • LCR-1010 – 10 kHz Handheld LCR Meter



Included Accessories

  • User Manual ×1
  • Safety Instruction Sheet ×1
  • LCR-100 – Short Circuit Bar
  • LCR-101 – Kelvin Clip
  • LCR-205 – USB Cable
  • LCR-305 – Rechargeable Lithium Battery
  • LCR-503 – Carry Bag



Optional Accessories

  • LCR-108 – Test Fixture (Tweezers) for SMD / Chip Components

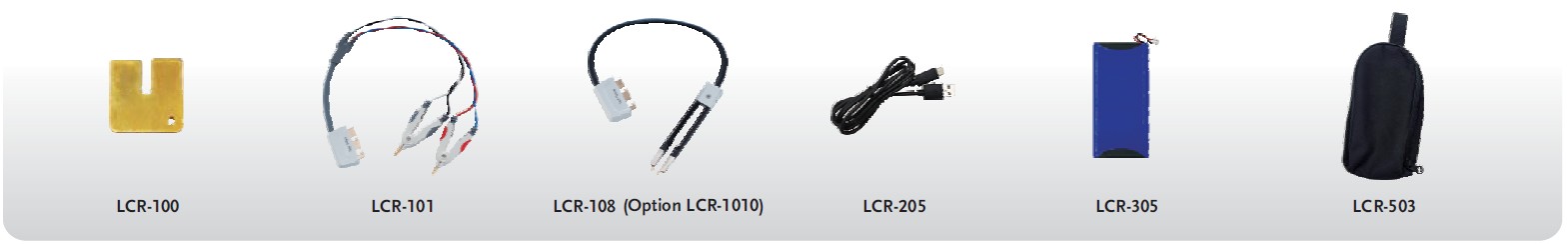

GW Instek LCR-1000 Series - Accessoiries



LCR-1010

Data sheet

Display
2,8", 50'000 points
Test Frequencies
50 Hz, 100 Hz, 120 Hz, 1 kHz, 2 kHz, 10 kHz, 50 Hz, 100 Hz, 120 Hz, 1 kHz, 2 kHz, 10 kHz, 50 kHz, 100 kHz
Interfaces
USB
Weight
~400 g

Specific References

Download

LCR-1000 Series - Datasheet

Download (1.46MB)

LCR-1000 Series - User Manual

Download (1.55MB)

LCR-1000 Series - PC Software

Download (2.58MB)
