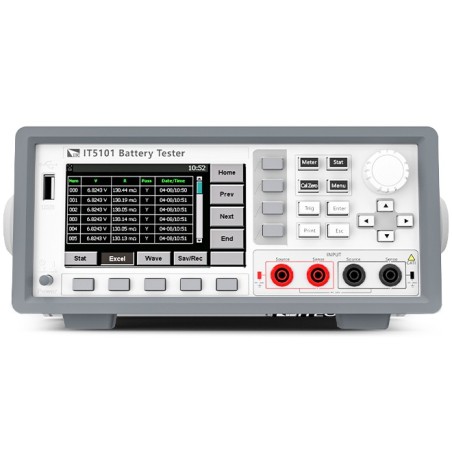

IT5100 Series - Battery Tester
Reference
IT5101 Battery tester -300 V à +300 V, 3 mΩ à 3000 Ω, resolution: 0.1 μΩ
IT5101H Battery tester -1000 V à +1000 V, 3 mΩ à 3000 Ω, resolution: 0.1 μΩ
IT5101E Battery tester -300 V à +300 V, 15 mΩ à 3 Ω, resolution: 0.1 μΩ
IT5102 Battery tester 0 V à +60 V, 0.01 mΩ à 2 Ω, resolution: 0.1 μΩ
IT5102E Battery tester 0 V à +60 V, 0.01 mΩ à 2 Ω, resolution: 0.1 μΩ
IT5100 Series Battery Internal Resistance Tester
The IT5100 Series is a high-precision, high-resolution, and high-speed battery internal resistance tester designed for demanding production and inspection environments.
Utilizing advanced AC 4-terminal sensing technology, the IT5100 simultaneously measures internal resistance and voltage with exceptional accuracy. It achieves a resistance resolution down to 0.1 μΩ and a voltage resolution of 10 μV, ensuring highly reliable test results.
With built-in statistical analysis and USB storage capability, the IT5100 supports long-term data recording when connected to an external USB drive. The integrated comparator function automatically determines whether battery parameters meet preset standards and calculates pass/fail rates, making it ideal for battery sorting and quality inspection applications.
Equipped with standard USB and LAN interfaces supporting the SCPI protocol, the IT5100 ensures seamless integration into automated test systems.
The IT5102 model supports 16-channel battery measurement per unit, with master-slave expansion up to 17 units and a maximum of 272 channels, significantly improving production testing efficiency.
The IT5100 Series is widely used in testing and sorting of mobile phone lithium batteries, electric vehicle battery packs, UPS systems, and other energy storage applications.
Key Features
- Simultaneous resistance and voltage measurement with 4.3-inch LCD display
- Voltage range: ±6 V to ±1000 V (model dependent), resolution: 10 μV
- Resistance range: 3 mΩ to 3000 Ω (model dependent), resolution: 0.1 μΩ
- Multiple voltage and resistance ranges with manual or automatic measurement modes
- High-speed measurement up to 125 readings per second (model dependent)
- AC 4-terminal measurement method for high accuracy
- Built-in USB and LAN interfaces with SCPI support
- Statistical analysis and USB data storage function
- Comparator function with HI / IN / LOW sorting display
- Zero adjustment function
- Measurement result alarm function
- IT5102 supports 16 channels per unit; expandable up to 272 channels
- Supports online battery testing (model dependent)
- Compatible with ITS5300 battery charge/discharge test systems for automated measurement
Applications
- High-voltage battery pack testing (electric vehicles, lithium batteries, etc.)
- Battery module testing
- Large-capacity and low-resistance cell testing
- High-speed mass production testing of coin cells
- UPS inspection and maintenance
- Deterioration and lifecycle assessment of alkaline and lead-acid batteries
- Contact resistance testing
- Equivalent Series Resistance (ESR) testing
Functions & Advantages
4-Terminal AC Measurement
To eliminate the influence of lead resistance and ensure high-precision results, the IT5101 and IT5101E models utilize advanced AC 4-terminal sensing technology.
This measurement method minimizes errors caused by test leads and contact resistance, enabling highly accurate simultaneous measurement of both internal resistance and voltage. It also supports long-term statistical analysis, ensuring consistent quality control in production environments.
Statistical Analysis & Measurement Configuration Storage
When connected to an external USB drive, the IT5101 supports statistical data analysis, significantly simplifying quality control procedures and improving production efficiency.
The instrument offers:
- Storage capacity for up to 1,000 groups of measurement data
- Storage for up to 126 measurement configuration settings
- Data export in .CSV format for easy reporting and traceability
These features provide convenient data management and seamless integration into quality management systems.
Optional Accessories
ITECH offers a range of optional accessories for the IT5100 Series battery testers, including:
- Four types of test leads with different probe configurations
- Zero adjustment calibration board
These accessories enhance measurement flexibility and ensure optimal performance across various battery testing applications.
