Los Angeles Abrasion and Fragmentation Testing Machine for Aggregates



Noustest Testing Equipement



Reference :

  • NT-A0060 Los Angeles Abrasion and Fragmentation Testing Machine for Aggregates



The Los Angeles abrasion machine is a fundamental device used to evaluate the resistance of aggregates to wear and fragmentation. It is designed to comply with major international standards for material durability testing.

The unit can be easily configured to meet ASTM and EN standards, with adjustable settings for the required number of rotations.

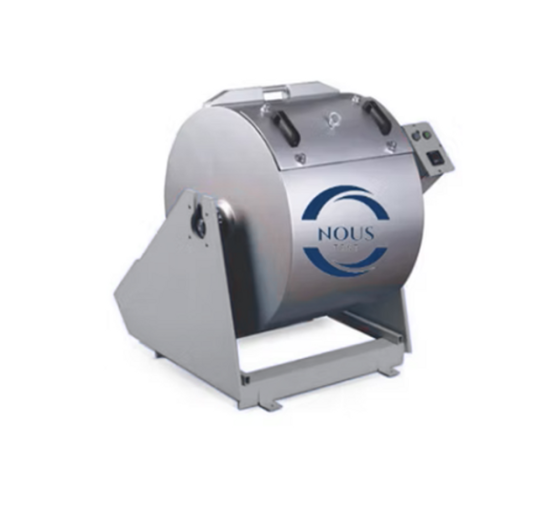

The device consists of a cylindrical steel drum with an inner diameter of 711 mm and an internal length of 508 mm, coupled with an electronic control unit. The drum operates at a speed of 31–33 rpm. The equipment features an automatic counter that stops the machine once the preset number of cycles has been completed. A collection tray is included for easy sample removal.

In accordance with EN standards, the abrasive ball set and the 1.6 mm sieve must be ordered separately. For AASHTO and ASTM standards, the abrasive ball set and the 1.7 mm mesh sieve must also be ordered separately.



The NT-A0060 Los Angeles abrasion machine is a reference equipment designed to evaluate the resistance of aggregates to wear and fragmentation. It is used to determine the durability of granular materials subjected to repeated mechanical stress, particularly in civil engineering, road infrastructure, and construction applications.

This apparatus is engineered to ensure reliable, repeatable results while fully complying with the requirements of major international standards for aggregate durability testing.



Standards Compliance

  • ASTM C131
  • EN 12697-17
  • NF P18-573
  • AASHTO T96
  • CNR N. 34
  • UNI EN 1097-2



Related References

  • NT-A0060 – Los Angeles Abrasion and Fragmentation Testing Machine for Aggregates
  • NT-A0062A – Abrasive Ball Set according to ASTM Standards
  • NT-0062E – Abrasive Ball Set according to EN Standards

The abrasive ball sets are essential components of the test and must be selected according to the applicable standard (ASTM or EN) to ensure full compliance of the testing procedure.



NT-A0060

Specific References

MPN
NT-A0060
