25271-88 - Student TESS Set, Mechanics 1



Logo Phywe



Reference :

25271-88

25271-88 - Student Set Mechanics 1, TESS Advanced Physics

Function and Applications

The Student Set Mechanics 1, TESS Advanced Physics is a complete educational kit designed for the study of the fundamental principles of mechanics. It enables a wide range of experiments, from Hooke’s Law to coupled pendulums.

This basic equipment set allows the performance of 32 experiments covering the following topics:

  • Physical quantities and characteristics
  • Forces
  • Elementary machines
  • Liquids and gases
  • Oscillations

Benefits

  • Complete ready-to-use equipment set with minimal preparation time.
  • Digital experiment descriptions available via QR code.
  • Aligned with educational curricula.
  • Modular stand material that is flexible, durable, and stable.
  • Color-coded movable parts to facilitate understanding of mechanical processes.

Equipment and Technical Data

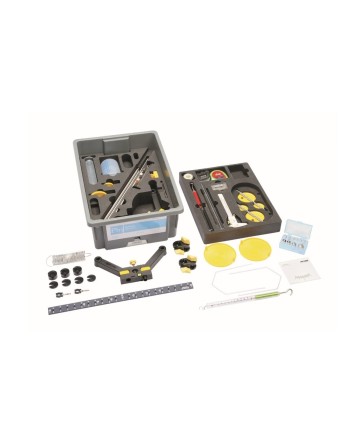

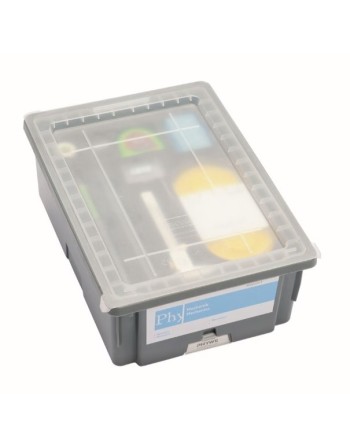

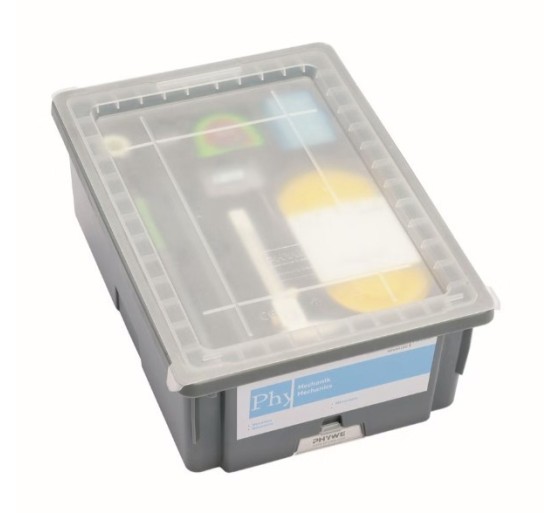

The set is supplied in a sturdy and stackable storage box containing all components required to conduct the experiments.

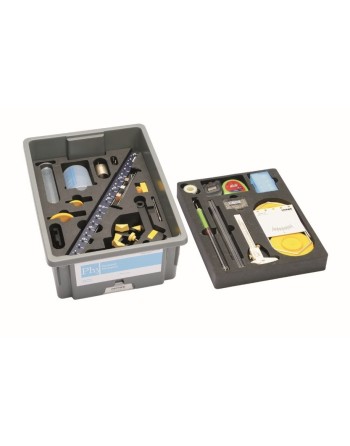

The storage box includes a precisely fitting foam insert to protect the components and allow quick checking for completeness.



Available Experiments

  • P0998100 – Measurement of length
  • P0998200 – Measurement of time
  • P0998300 – Determination of the mass of solid and liquid bodies
  • P0998500 – Determination of the density of solid bodies
  • P0998600 – Determination of the density of liquids
  • P0998800 – Measurement of forces
  • P0998900 – Force and reaction
  • P0999000 – Weight
  • P0999100 – Hooke's Law
  • P0999400 – Forces in the same and opposite directions
  • P0999500 – Combination of forces; parallelogram of forces
  • P0999700 – Force on a pulley mounting
  • P0999800 – Finding the center of gravity
  • P1000000 – Reaction forces for an unloaded beam
  • P1000100 – Reaction forces for a loaded beam
  • P1000500 – Beam balance
  • P1000600 – Double-sided lever
  • P1000700 – One-sided lever
  • P1000800 – Force and displacement on a fixed pulley
  • P1000900 – Force and displacement on a free pulley
  • P1001000 – Block and tackle formed from a fixed and a free pulley
  • P1001100 – Block and tackle with four pulleys
  • P1001500 – Potential energy and elastic energy
  • P1001600 – Power
  • P1002100 – Determination of the density of solid bodies by buoyancy measurement
  • P1002200 – Determination of the density of liquids using a densimeter
  • P1002700 – Helical spring pendulum
  • P1002800 – Thread pendulum
  • P1003000 – Damping
  • P1003100 – Forced oscillation and resonance
  • P1003300 – Reversible pendulum
  • P1003400 – Coupled pendulum systems

Box containing* :

  • 1x 02001-00 Support base, separable for 2 rods
  • 1x 02031-00 Stand rods, stainless steel, various sizes
  • 2x 02036-01 Support rod with hole, stainless steel, 10 cm
  • 2x 02043-00 Boss head
  • 1x 02089-01 Fishing line, l = 5m
  • 2x 02204-01 Weight holder, 10 g
  • 4x 02205-03 Slotted weight, silver bronze, 10 g
  • 3x 02206-03 Slotted weight, silver bronze, 50 g
  • 1x 02220-10 Helical spring, 3,9 N/m
  • 1x 02222-00 Helical spring, 20 N/m
  • 1x 02262-00 Pulley, movable, d = 65 mm, with hook
  • 1x 02263-00 Rod for pulley
  • 1x 03065-02 Spring balance, transparent, 1 N
  • 1x 03065-03 Spring balance, transparent, 2 N
  • 2x 03065-20 Spring balance holder
  • 1x 03903-00 Aluminium column
  • 1x 03913-00 Steel Column nickel-plated
  • 1x 03949-00 Holding pin
  • 2x 03951-00 Balance pan, plastic
  • 1x 03960-00 Lever
  • 1x 03961-00 Pointer for lever
  • 1x 03962-00 Plate with scale
  • 1x 03970-00 Pulley,movable, d = 40 mm, with hook
  • 1x 03990-00 Steel pellets, d = 2 mm, 120 g
  • 1x 05938-00 Wood column
  • 1x 05961-00 Glass tube holder with tape measure clamp
  • 1x 09936-00 Measuring tape, l = 2 m
  • 2x 02266-00 Pulleys, double in line
  • 1x 36011-01 Beaker, 100 ml, plastic (PP)
  • 1x 36013-01 Beaker, 250 ml, plastic (PP)
  • 1x 36628-01 Graduated cylinder, 50 ml, plastic
  • 1x 44017-01 Set of precision weights,1 g - 50 g
  • 1x 64701-00 Pipettes with rubber cap
  • 1x 03011-00 Vernier calliper, plastic
  • 1x 24025-00 Digital stopwatch, 24 h, 1/100 s and 1 s
  • 3x 331590 Support rod l = 300 mm with thread M6

*Indicative and non-exhaustive list, subject to change according to technological developments.



25271-88

Specific References

2 other products in the same category

P2110105 – Measurement Techniques
Quick view

P2110105 – Measurement Techniques



Logo Phywe



Reference

  • P2110105 : Measurement Techniques

Principle

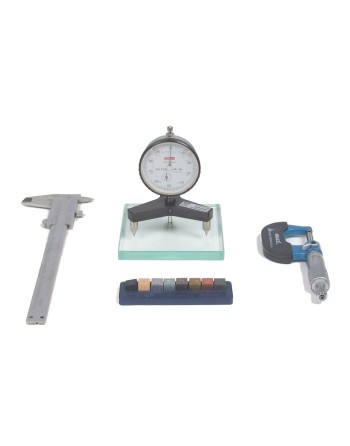

Measuring instruments such as vernier calipers, micrometers, and spherometers enable highly accurate measurements of lengths, thicknesses, diameters, and radii of curvature. This educational module demonstrates measurement procedures, as well as the concepts of measurement accuracy and reading precision.

Key Benefits

  • Provides a fundamental basis for practical science laboratory courses
  • Supports the acquisition of essential skills in measuring basic mechanical quantities
  • Raises awareness of measurement accuracy limitations
  • Encourages the combination of multiple measurements to determine a physical quantity
  • Enables determination of radii of curvature using a spherometer



P2130305 – Newton’s Second Law with Low-Friction Track
Quick view

P2130305 – Newton’s Second Law with Low-Friction Track



Logo Phywe



Reference

  • P2130305 : Newton’s Second Law with Low-Friction Track

Principle

The distance-time law, the velocity-time law, and the relationship between mass, acceleration, and force are investigated using a demonstration track designed to study uniformly accelerated rectilinear motion.

Advantages

  • High-precision results thanks to measurements performed under very low friction conditions, ensured by a cart equipped with sapphire bearings.
  • Adjustable feet along the entire length of the track, allowing easy and precise alignment, even on small laboratory tables.
  • Highly robust accessories, designed to prevent overloading of the cart through an elastic bearing system on the base plate, thereby reducing unnecessary failures.
  • Detailed, illustrated step-by-step manual for easy implementation of experiments.
  • The 4-4 timer provides great versatility and can be used for a wide range of experimental applications, including:
    • distance-time law measurements at four distances,
    • velocity measurements at four positions,
    • collision principles,
    • measurement of rotational motion period,
    • direct measurement of the duration of a full oscillation of a mechanical pendulum,
    • short- and long-term measurements using two 8-digit displays by connecting two timers.
