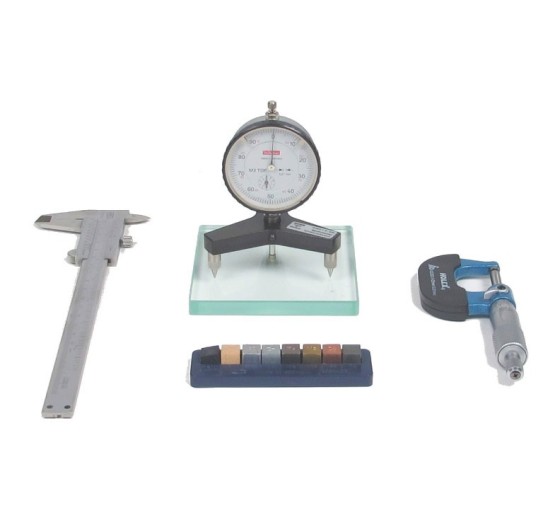

P2110105 – Measurement Techniques
Reference
- P2110105 : Measurement Techniques
Principle
Measuring instruments such as vernier calipers, micrometers, and spherometers enable highly accurate measurements of lengths, thicknesses, diameters, and radii of curvature. This educational module demonstrates measurement procedures, as well as the concepts of measurement accuracy and reading precision.
Key Benefits
- Provides a fundamental basis for practical science laboratory courses
- Supports the acquisition of essential skills in measuring basic mechanical quantities
- Raises awareness of measurement accuracy limitations
- Encourages the combination of multiple measurements to determine a physical quantity
- Enables determination of radii of curvature using a spherometer
Practical Tasks
- Determination of tube volume using a vernier caliper
- Measurement of the thickness of wires, cubes, and plates using a micrometer
- Measurement of plate thickness and radius of curvature of watch glasses using a spherometer
Learning Objectives
- Length measurement
- Internal and external diameter measurement
- Thickness measurement
- Determination of radius of curvature
- Reading and use of a vernier scale
Equipment Included*
Measuring Instruments
- 1x Vernier caliper, stainless steel, 0–160 mm, accuracy 1/20 (Ref. 03010-00)
- 1x Micrometer (Palmer) 0–25 mm, accuracy 0.01 mm (Ref. 03012-00)
- 1x Spherometer (Ref. 03017-00)
Samples and Accessories
- 1x Watch glass, diameter 80 mm (Ref. 34572-00)
- 1x Watch glass, diameter 100 mm (Ref. 34574-00)
- 1x Watch glass, diameter 125 mm (Ref. 34575-00)
- 1x Iron wire, diameter 1.0 mm, length 10 m (Ref. 06104-01)
- 1x Aluminum foil set (2 pieces) (Ref. 06270-00)
- 1x Glass plate, 100 × 85 × 1 mm (Ref. 08203-00)
- 1x Set of straight glass tubes, length 80 mm (10 pieces) (Ref. MAU-16074541)
- 1x Glass tube, external diameter 24 mm, length 120 mm (Ref. MAU-16074500)
- 1x Set of 8 cubes (Ref. 02214-00)
*This list is provided for information purposes only and may be subject to change due to technical improvements.
