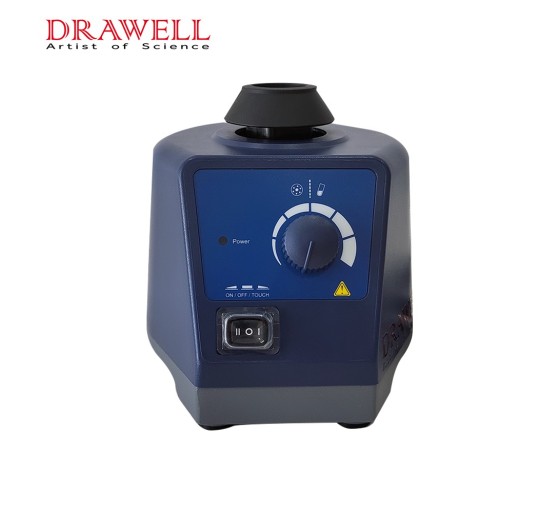

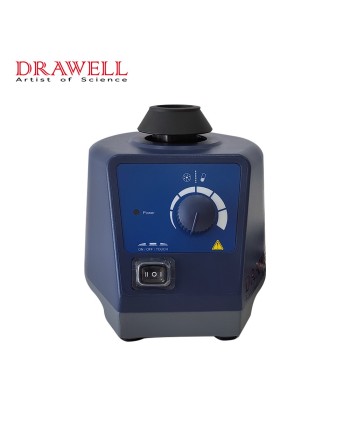

MX-S – Vortex Mixer
Reference
- MX-S : Vortex Mixer
General Description
The MX-S vortex mixer is a laboratory device designed for fast and efficient mixing of liquid components in tubes. It operates using an eccentric mechanism that generates a vortex motion, making it ideal for resuspending cells or chemical precipitates.
This equipment is widely used in biological and chemical laboratories, particularly for vigorous resuspension of cells or pellets in tubes up to 15 ml.
Key Features
- Stepless speed control from 0 to 3000 rpm
- Smooth and continuous speed adjustment
- Suitable for various mixing applications with optional adapters
- Specially designed suction feet for excellent stability
- Robust die-cast aluminum construction
Technical Specifications
| Voltage | 110–120 V / 220–230 V, 50/60 Hz |
| Power | 60 W |
| Mixing Motion | Orbital |
| Orbital Diameter | 4 mm |
| Motor Type | Shaded pole motor |
| Motor Input Power | 58 W |
| Motor Output Power | 10 W |
| Speed Range | 0 – 3000 rpm |
| Speed Display | Scale |
| Operation Mode | Touch operation / Continuous |
| Dimensions (W x H x D) | 127 × 130 × 160 mm |
| Weight | 3.5 kg |
| Permissible Ambient Temperature | 5 – 40 °C |
| Permissible Relative Humidity | ≤ 80% RH |
| Protection Class | IP21 |
