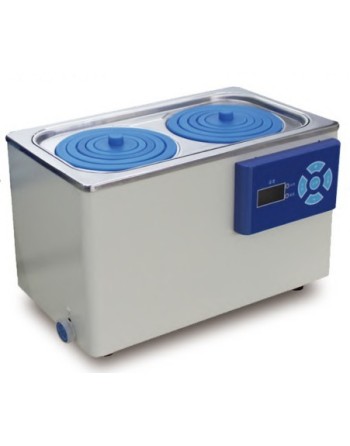

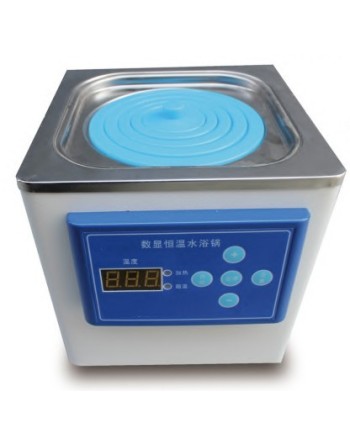

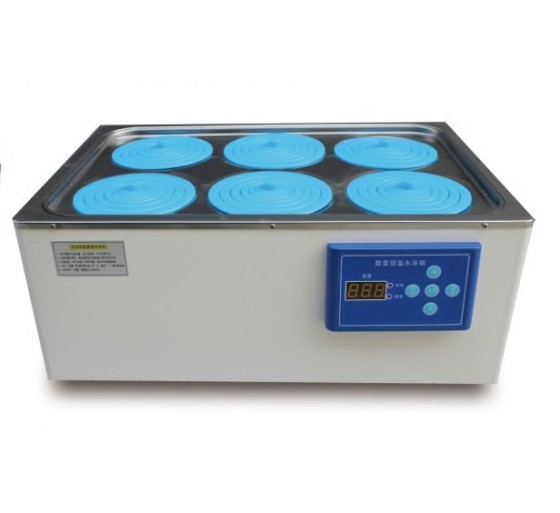

Electric Constant Temperature Water Bath

General Description

The electric thermostatic water bath is a commonly used laboratory device for sample pre-treatment. It is widely applied in medical, chemical, biological fields, as well as in research institutions and laboratories.

The unit consists of an outer housing, a water tank, an electric heating system, and a temperature control system.

Working Principle

The temperature sensor converts the water temperature into a resistance value. After amplification and comparison through an integrated circuit, a control signal is generated to regulate the heating power effectively. This ensures that the water temperature remains constant with high accuracy.

Advantages

Stainless steel tubular heating elements positioned horizontally.
Perforated aluminum shelves for stable placement of laboratory containers.
Top cover with interchangeable concentric rings suitable for different flask diameters.
Side drain outlet for easy water discharge.
High-quality temperature control system ensuring precision, reliability, and ease of use.

Technical Specifications

Model	Configuration	Working Dimensions (mm)
HH-11-1	Single row – 1 position	160 × 160 × 120
HH-11-2	Single row – 2 positions	300 × 180 × 90
HH-21-4	Double row – 4 positions	320 × 320 × 90
HH-11-4	Single row – 4 positions	620 × 170 × 90
HH-21-6	Double row – 6 positions	420 × 320 × 90
HH-11-6	Single row – 6 positions	920 × 170 × 90
HH-21-8	Double row – 8 positions	610 × 310 × 90
HH-11-8	Single row – 8 positions	1220 × 170 × 90

Performance

Temperature range: Ambient +5°C to 100°C
Temperature accuracy: ±0.5°C
Temperature resolution: 0.1°C

Scope of Supply

Main unit
Power cord
Internal rack/partition
Top cover
User manual
Warranty card
Certificate of conformity

Reference HH Series

Specific References

Download

HH Series - Datasheet

Download (990.78KB)
