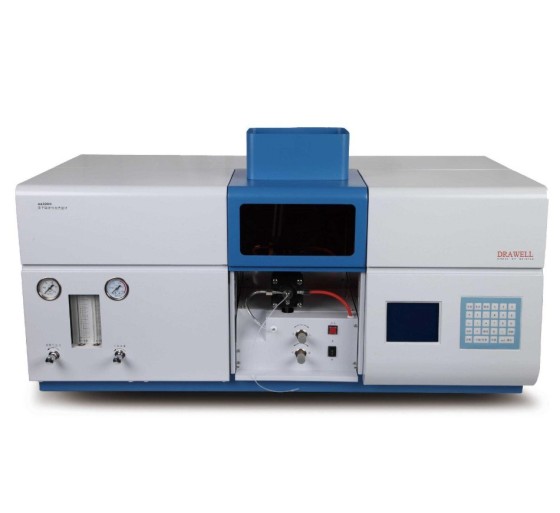

DW-AA320N – Atomic Absorption Spectrophotometer
Reference
- DW-AA320N : Atomic Absorption Spectrophotometer
Features
- Built-in computer and LCD display: Integrated data processing ensuring stability and reliability. Functions include integral holding, peak height and area measurement, auto zero adjustment, deuterium lamp background correction, multi-linear and nonlinear curve fitting, display of parameters and calibration curves on screen, and report printing. Interface for external PC connection.
- Excellent stability: Double-beam system automatically compensates for light source and wavelength drift due to temperature variations and electronic drift, ensuring high baseline stability.
- Fast analysis: Hollow cathode lamp requires no long preheating. Samples can be analyzed immediately, ideal for multi-element rapid analysis.
- High measurement precision: Gas path system equipped with pressure and current stabilizers to maintain a stable flame and low noise. Finely focused light beam passes through the flame for high-precision analysis and low characteristic concentration.
- High-energy optical path: Total reflection system eliminates chromatic aberration across the full spectrum. Light beam is converted to an elongated spot optimizing slit passage and increasing double-beam flux.
- Durable and corrosion-resistant atomization system: Burner made of new titanium alloy, corrosion-resistant and thermally stable, no water cooling required, providing excellent measurement sensitivity.
- Multi-functional analysis modes: Flame atomic absorption, flame emission, graphite furnace atomic absorption, and hydride generation.
- Safe and reliable gas system: Quick gas switching and safety devices enable use of air-acetylene and nitrous oxide-acetylene flames, analyzing over 60 elements.
- Complete accessories: Supplied with the instrument, ready to use upon installation.
Technical Specifications
- Wavelength range: 190 – 900 nm
- Wavelength accuracy: ± 0.5 nm
- Wavelength repeatability: 0.3 nm (single direction)
- Spectral bandwidth: 0.2 / 0.4 / 0.7 / 1.4 / 2.4 / 5.0 nm
- Resolution: < 40%
- Baseline stability: 0.004 Abs / 30 min
- Characteristic concentration (Copper): 0.04 µg/ml/1%
- Detection limit (Copper): 0.008 µg/ml
- Background correction capacity: > 30 times
- Interface: RS232 included
- Printer: optional
- Power supply: 220 V – 3 A – 50 Hz
- Gross weight: Main unit 160 kg, Accessories 65 kg
Optional Accessories
- Titanium burner – 5 cm
- Nitrous oxide generator
- Hydride generator
- Graphite tubes
- Acetylene regulator YQE-213
- Nitrous oxide regulator
- Software
- Recirculating water cooling system
- Air compressor
- Hollow cathode lamps (Cd, Cu, Pd, Zn)
- Software
