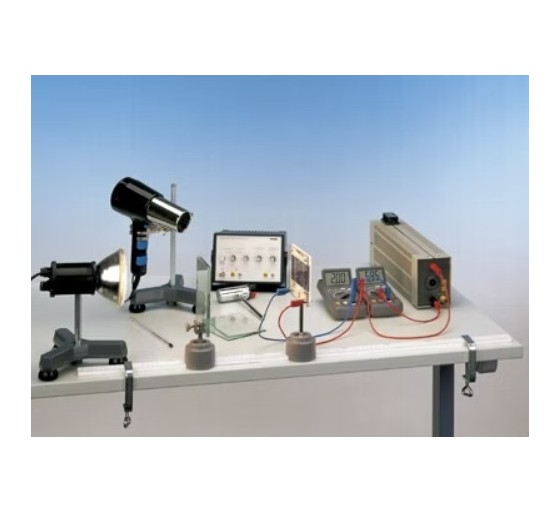

P2410901 - Courbes caractéristiques d’une cellule solaire
Reference : P2410901
Principle
The current-voltage characteristics of a solar cell are measured at different light intensities by varying the distance between the light source and the solar cell.
The influence of temperature on the open-circuit voltage and short-circuit current is also investigated.
Benefits
- Enables quantitative measurement of the solar cell characteristics while taking light intensity into account.
- Allows the influence of temperature to be minimized and its effects to be measured quantitatively.
- Enables the relationship between short-circuit current and light intensity to be determined.
Experimental Objectives
- Determine the light intensity using a thermopile at different distances from the light source.
- Measure the short-circuit current and open-circuit voltage at different distances from the light source.
- Evaluate the influence of temperature on the open-circuit voltage and short-circuit current.
- Plot the current-voltage characteristics at different light intensities.
- Investigate the current-voltage characteristics under different experimental conditions: cooling with an air blower, no cooling, and illumination through a glass plate.
- Determine the current-voltage characteristic of the solar cell when illuminated by natural sunlight.
Equipment
- 1× 06752-22 Solar battery, 4 cells, with cable and connectors
- 1× 08480-00 Moll-type thermopile
- 1× 13626-93 Universal measuring amplifier
- 1× 06116-03 Rheostat, 330 Ω, 160 W
- 1× 06751-01 E27 ceramic lamp socket with reflector, switch and safety plug
- 1× 06759-93 Filament lamp, 220 V / 120 W, with reflector
- 1× 04030-93 Hot/cold air blower
- 1× 03001-00 Meter scale, length 1000 mm
- 2× 02002-55 Tripod base for one rod
- 2× 02004-00 Barrel base for one rod
- 1× 02031-00 Stainless-steel stand rod, length 250 mm, diameter 10 mm
- 2× 02054-00 Right-angle clamp with fulcrum screw
- 2× 02062-00 Plate holder
- 2× 37715-01 Universal clamp
- 2× 02011-00 Bench clamp
- 1× 35010-10 Glass panes, 150 × 100 × 4 mm, 2 pieces
- 2× 07122-00 Digital multimeter, 600 V AC/DC, 10 A AC/DC, 20 MΩ, 200 µF, 20 kHz, −20 °C to 760 °C
- 1× 38056-00 Laboratory thermometer, −10 °C to +110 °C
- 3× 07361-01 Connecting cable, 32 A, red, l = 500 mm
- 2× 07361-04 Connecting cable, 32 A, blue, l = 500 mm
- 1× 02030-15 Stainless-steel stand rod, length = 150 mm
